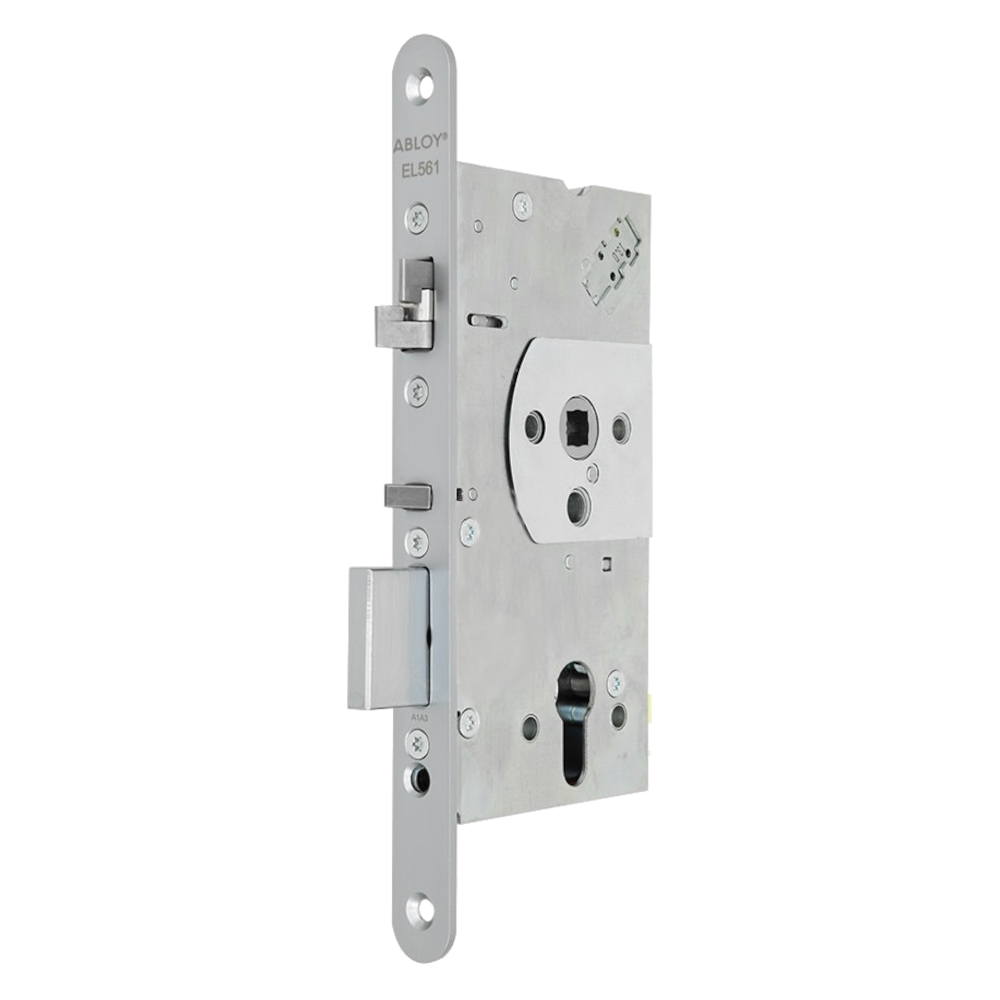

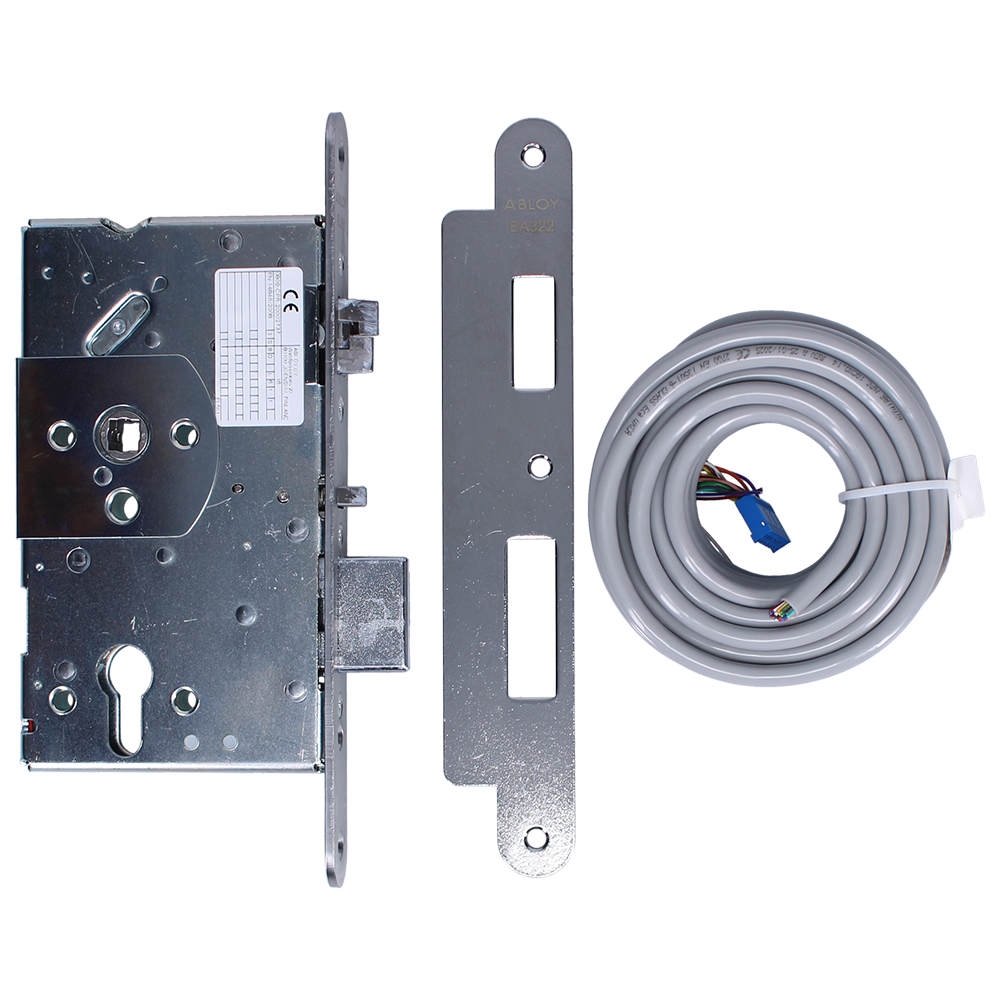

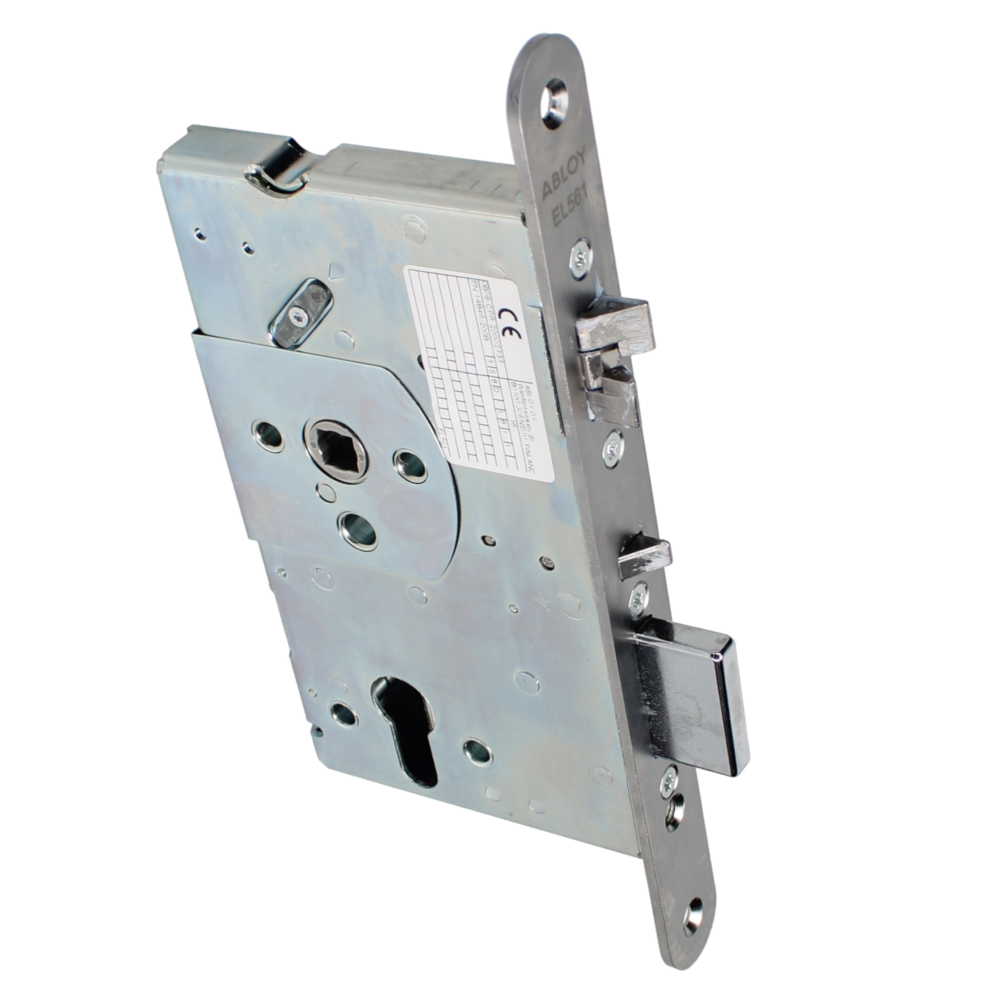

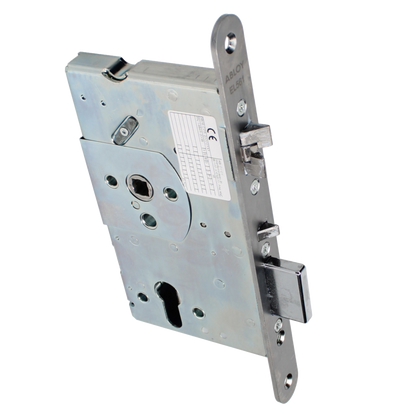

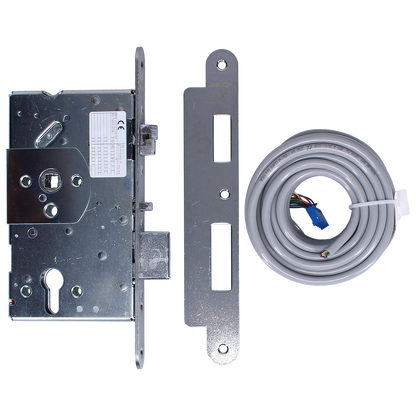

ABLOY EL561 DIN Electric Lock

The Abloy EL561 is a high-security, handle-controlled electric solenoid lock which integrates with access control systems, allowing both handles to be electrically managed. Upon door closure, the lock automatically projects a 20 mm deadbolt and secures the double-action latch, ensuring two-point locking. The EL561 is designed for medium-traffic wooden or metal doors and is non-handed, facilitating installation on left or right-handed doors.

It offers easily configurable fail-safe (fail-unlocked) or fail-secure (fail-locked) modes and operates on 12-24 V DC power. Compliant with BS EN 12209 standards it is suitable for applications in business premises, public buildings, hospitals, and educational facilities.

ABLOY EL561 DIN Electric Lock

Features

• Mechanical automatic locking which engages deadbolt and secures latch upon door closure
• Compatible with both left and right-handed doors
• Easily switchable between fail-unlocked and fail-locked settings
• 20 mm deadbolt throw
• Meets BS EN 12209 requirements for mechanical resistance and security
• Monitors door status, handle operation, bolt position, and cylinder usage

Finishes

• Satin Stainless Steel

Categories

• Access Control
• Electric Locking
• Electric Lock
• Abloy

Our ABLOY EL561 DIN Electric Lock from Abloy Security is a quality tested product at a reasonably low price.

If you need any further information or are looking for an alternative size or similar item please contact us.
