Designed for double door applications this slim line magnet has an electro-less nickel plated armature and aluminium housing and is available monitored or unmonitored. It has a holding force up to 600lbs (272kg) per door and the input voltage is switchable between 12V DC or 24 V DC.

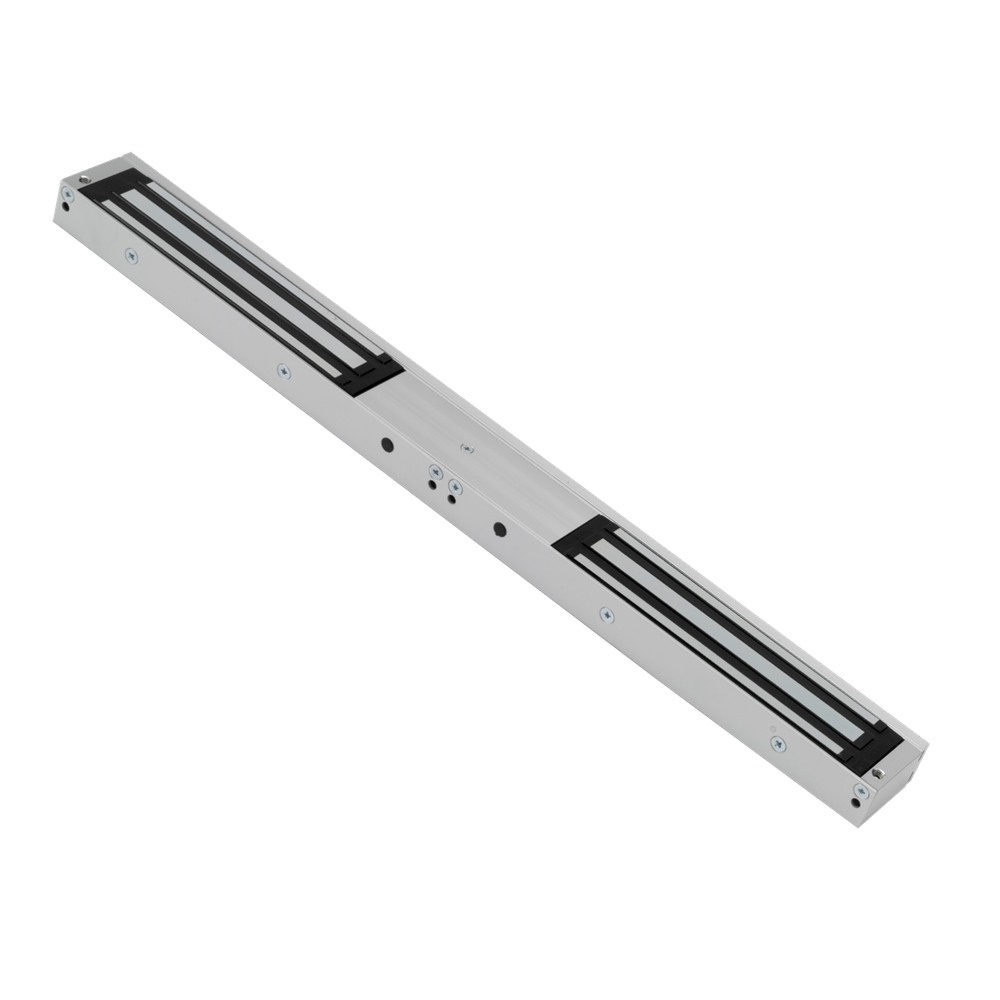

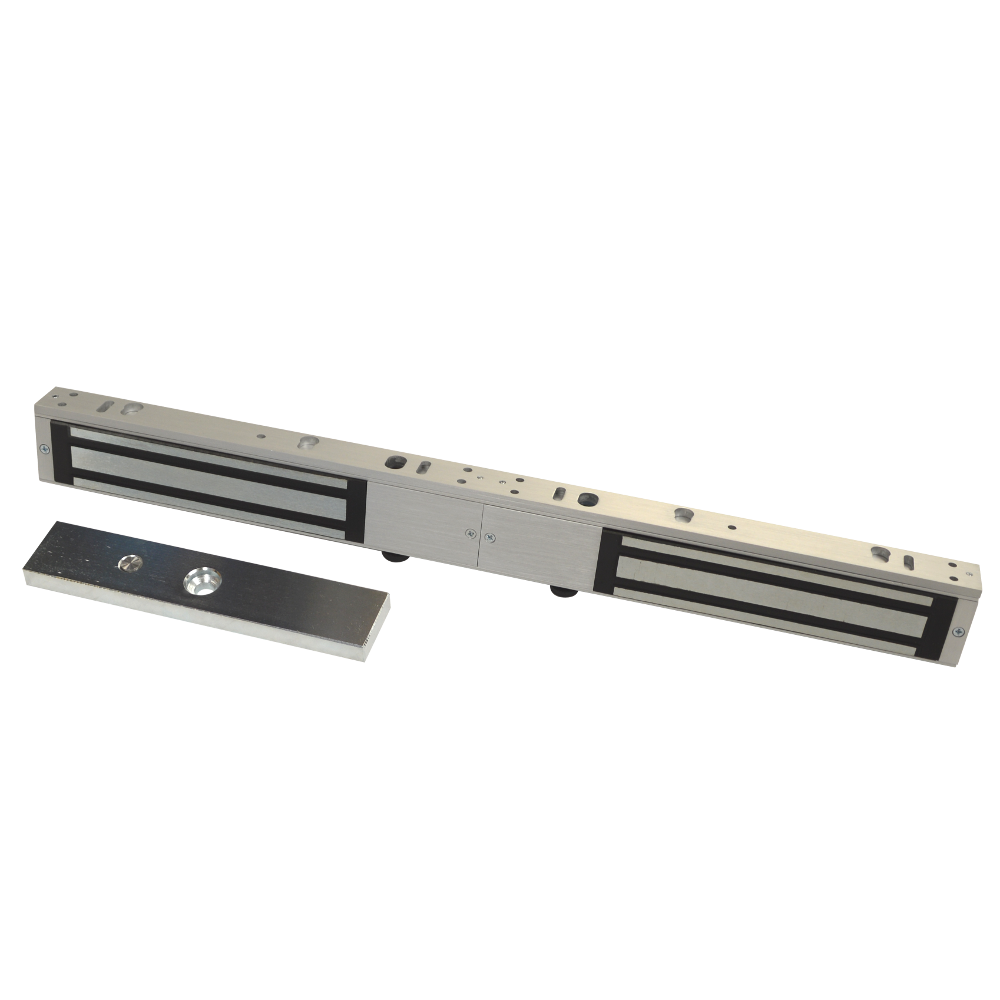

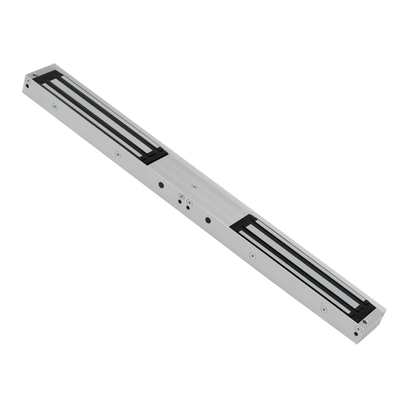

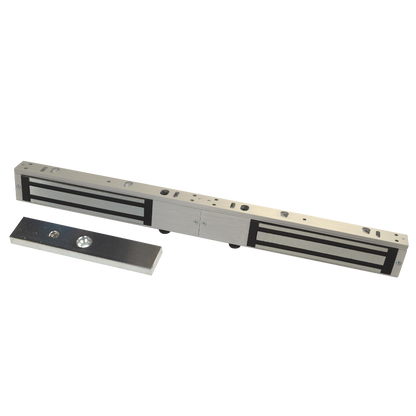

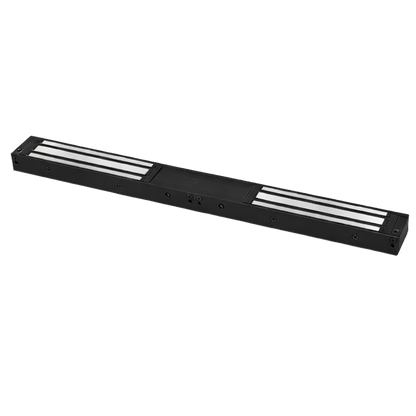

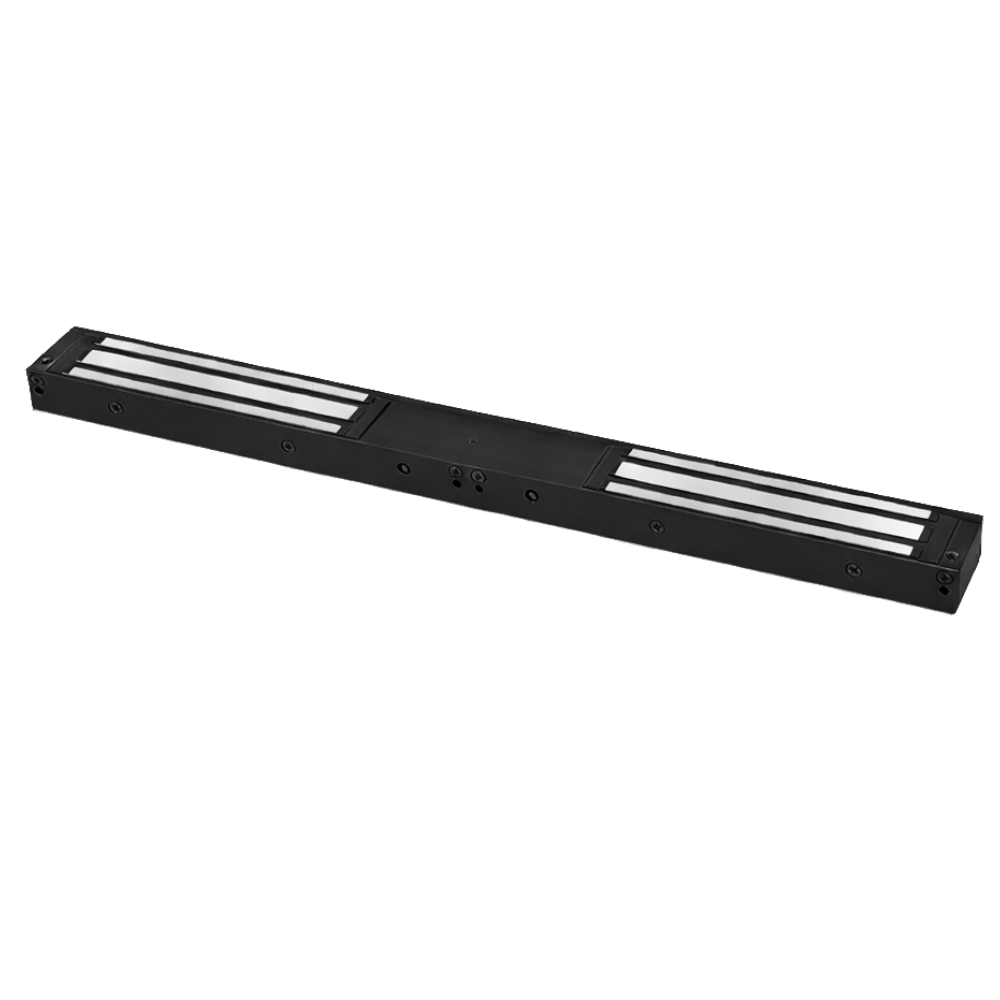

ASEC Slim Line Double Magnet
Features
Holding force up to 600lbs (272kg) per door

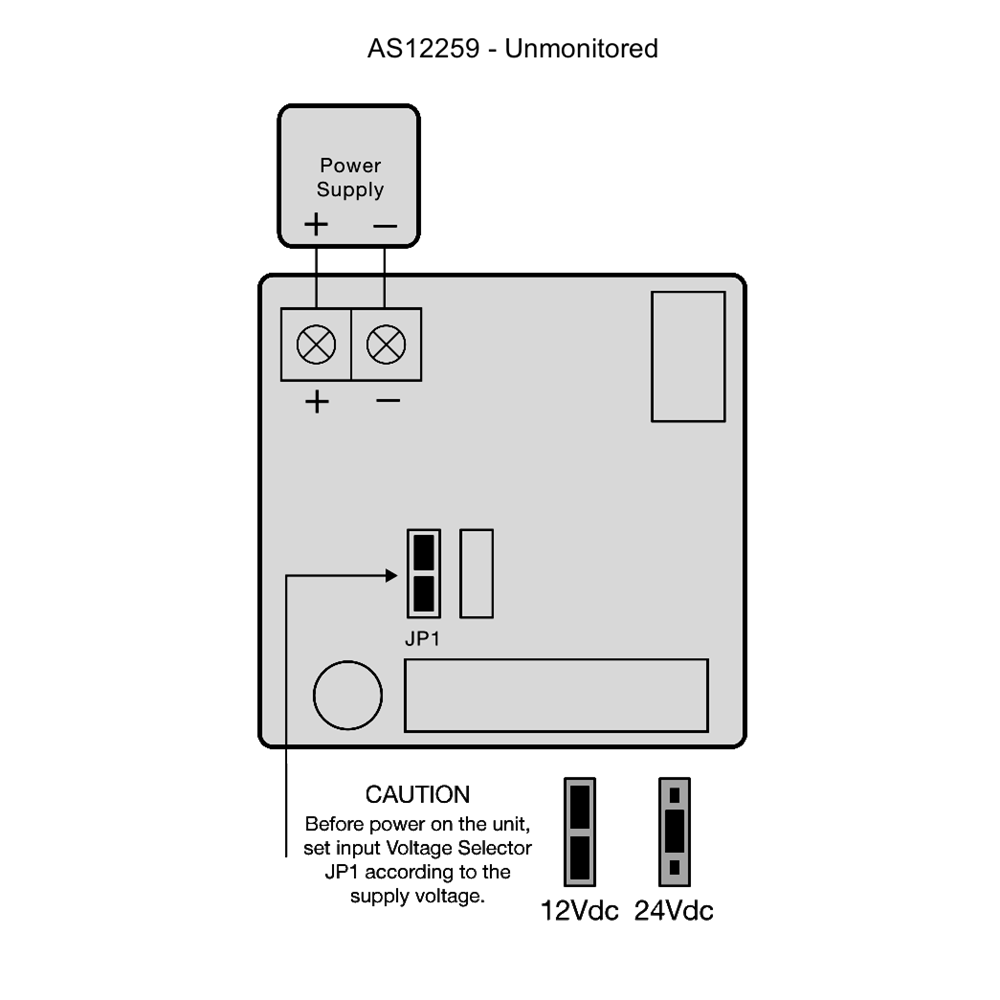

Operating voltage 12/24Vdc (Selectable)
Electro-less nickel plated armature
Aluminium housing
LED Status (Red/Green) - Monitored version

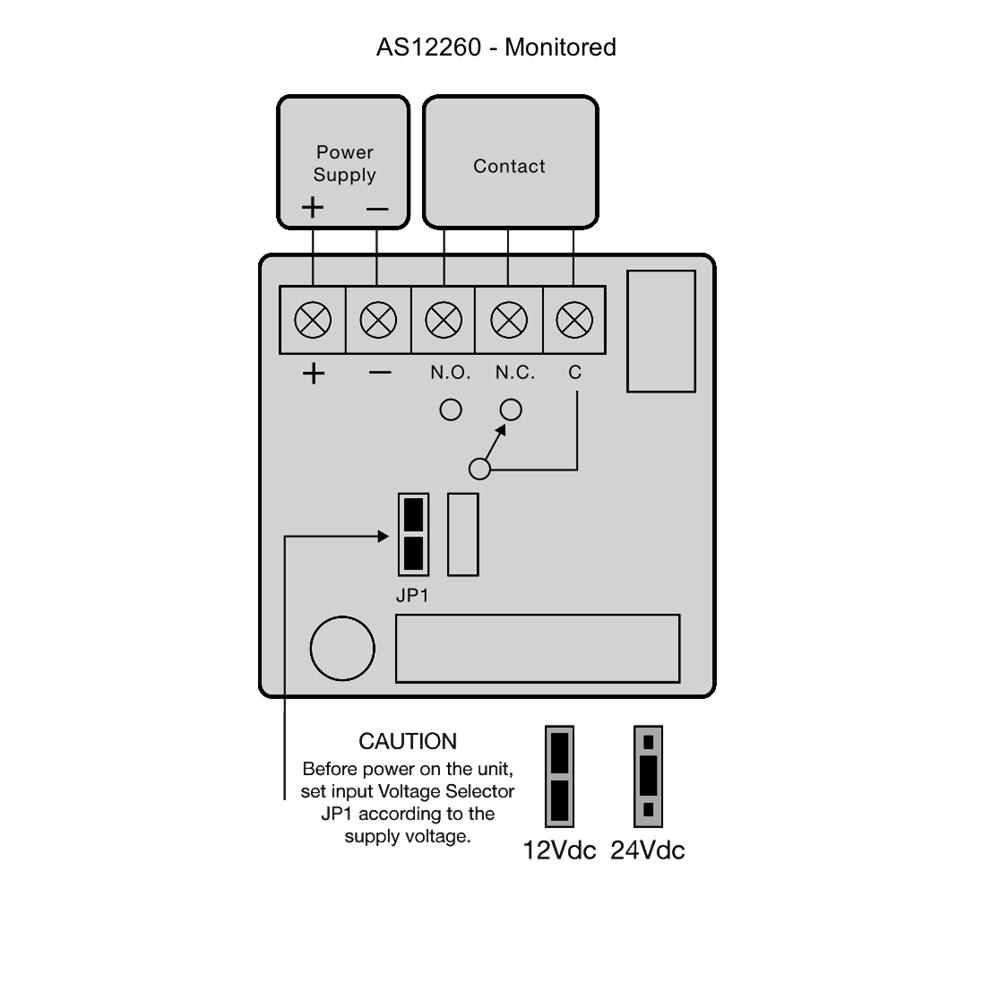

Monitored version - Magnetic bond sensor monitor output remotely monitors the door lock or unlock status (N.C output - door opened; N.O output - door closed. (SPDT rated 0.25a at 12Vdc)
Categories
Access Control
Electric Locking
Magnet
Asec
Slim Line
Our ASEC Slim Line Double Magnet from Asec is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.

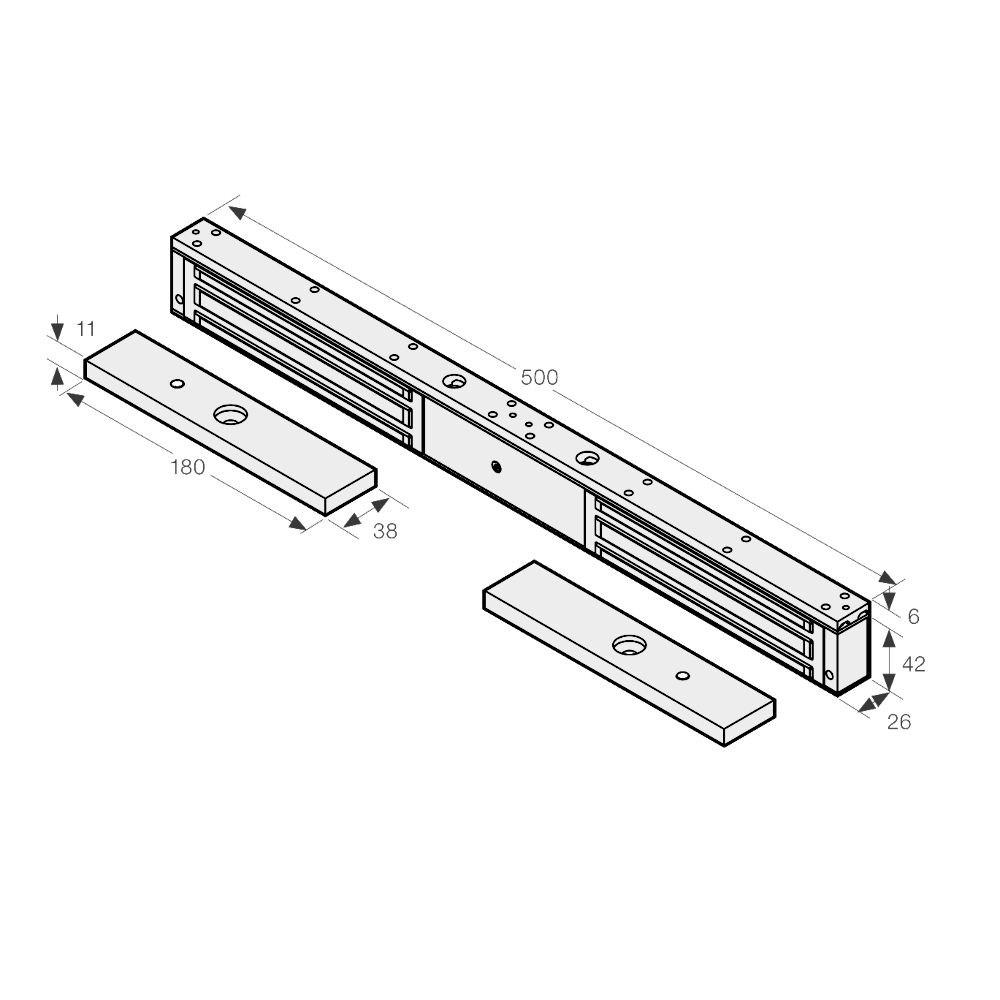

Option Specifications
Depth
26mm
Height
26mm
Width
50cm
Input Voltage
12/24V DC
Length
42mm
Monitored
No
Pack Quantity
1
Product References
AS12260, AS12259
Barcode References
5056240125060, 5056240125053
* Information above is accurate at the time of entry and may be subject to change at any time.
