Brand: Avocet
AVOCET Pioneer Caravan Lock Latch & Deadbolt With 2 Deadbolt
AVOCET Pioneer Caravan Lock Latch & Deadbolt With 2 Deadbolt
By purchasing you are agreeing to our Terms of Sale.
Low stock: 1 left
Couldn't load pickup availability

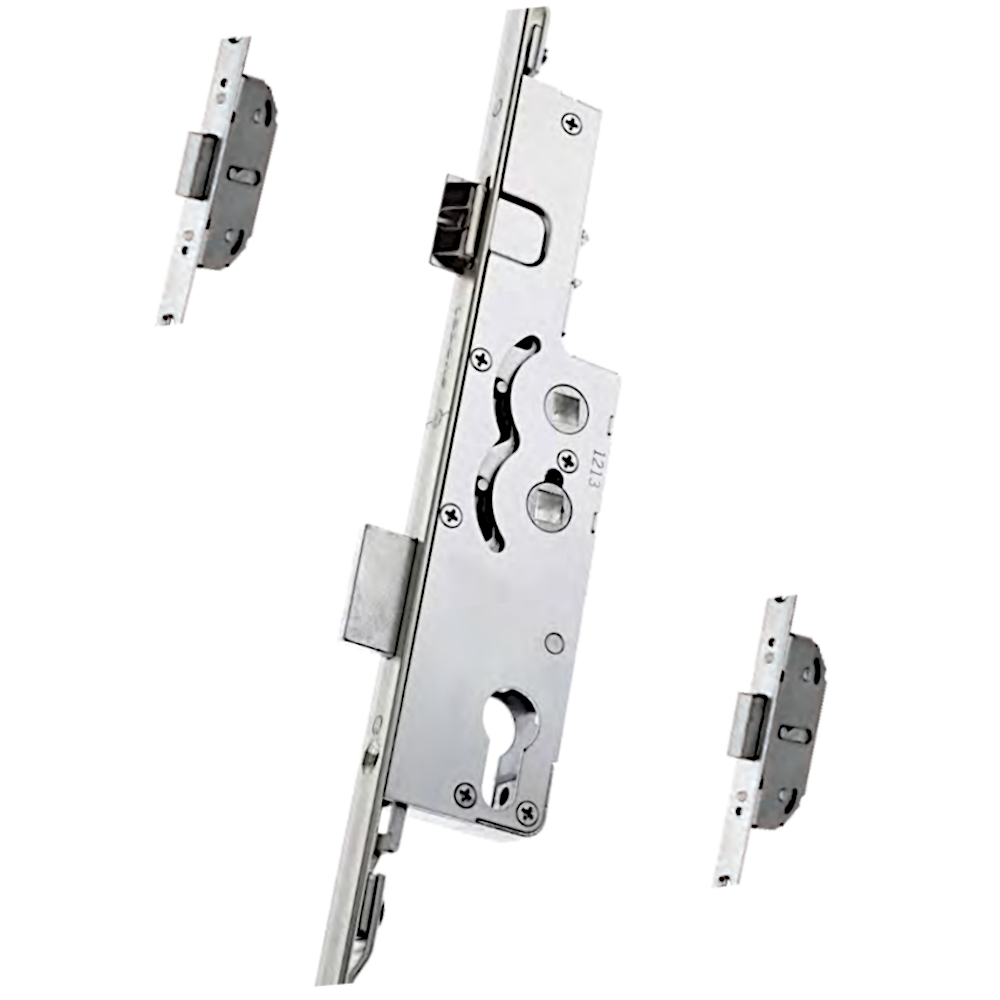

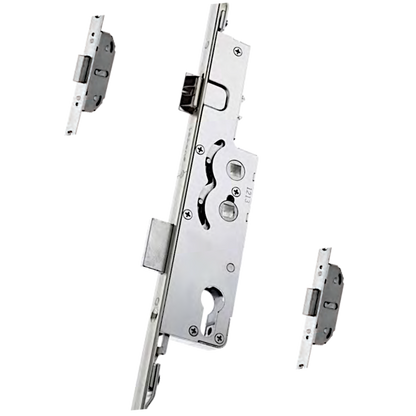

Avocet Pioneer DLPNE353DBT Caravan door lock suitable for lever/lever or lever/pad applications. The centre case has a 35mm backset with 92mm centres, a reversible latch and a deadbolt with 20mm throw. In addition there are two other deadbolt locking points and the overall length of the multipoint is 1565mm.
AVOCET Pioneer Caravan Lock Latch & Deadbolt With 2 Deadbolt
Features
- 1565mm length for caravan doors
- Reversible centre latch
- 20mm deadbolt throw
- 35mm backset
- Suitable for lever/lever and lever/pad applications
- Endurance tested to 100,000 operations
Categories
- Multi Point Locks
- Door
- Full Units
- Avocet
Our AVOCET Pioneer Caravan Lock Latch & Deadbolt With 2 Deadbolt from Avocet is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
| Specifications | |
|---|---|
| Backset | 35mm |
| Case Height | 220mm |
| Case Width | 50mm |
| Centre Case | Latch & Deadbolt |
| Centres | 92mm |
| Faceplate Width | 16mm |
| Length | 1.565m |
| Locking Point Dead Bolt | 2 |
| Pack Quantity | 1 |
| Spindle | Split |
| Standards | BS EN 1670:2007 - Grade 4 |
| Product References | L36683 |
| Barcode References | 5056240155838 |
| * Information above is accurate at the time of entry and may be subject to change at any time. | |
