The Briton 5420 is a mortice euro profile sashlock suitable for use on lockable doors with lever furniture to withdraw the latchbolt. If used on a fire door a suitable door closer must be fitted.

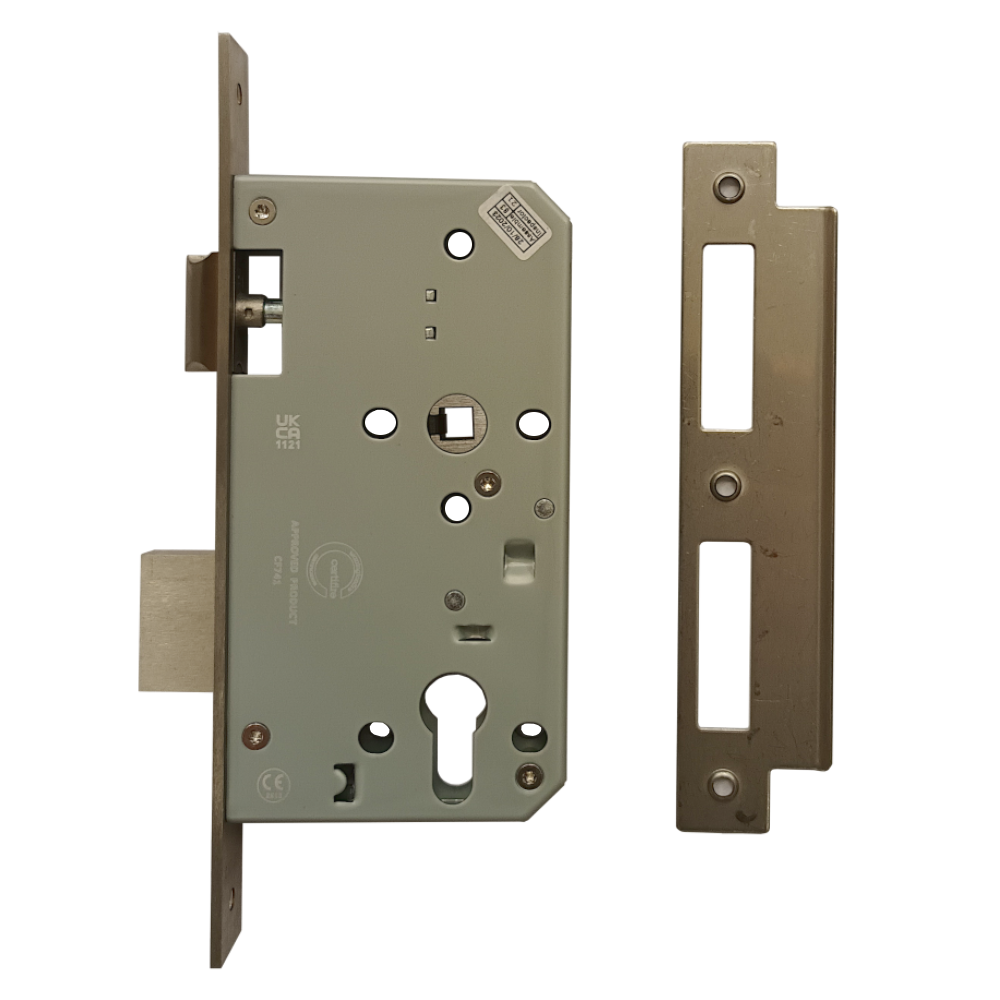

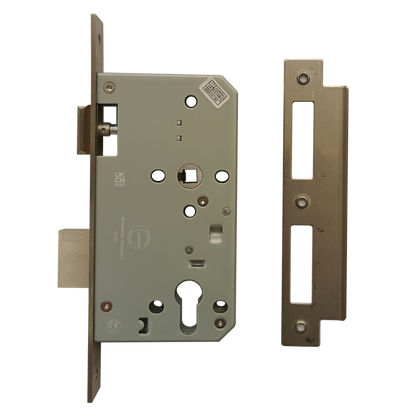

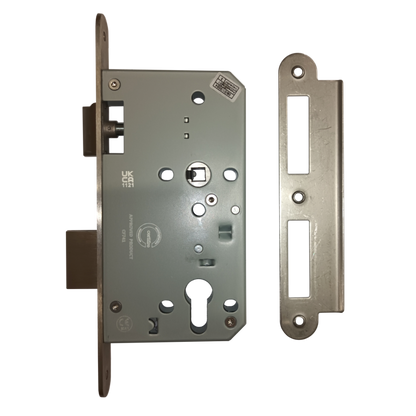

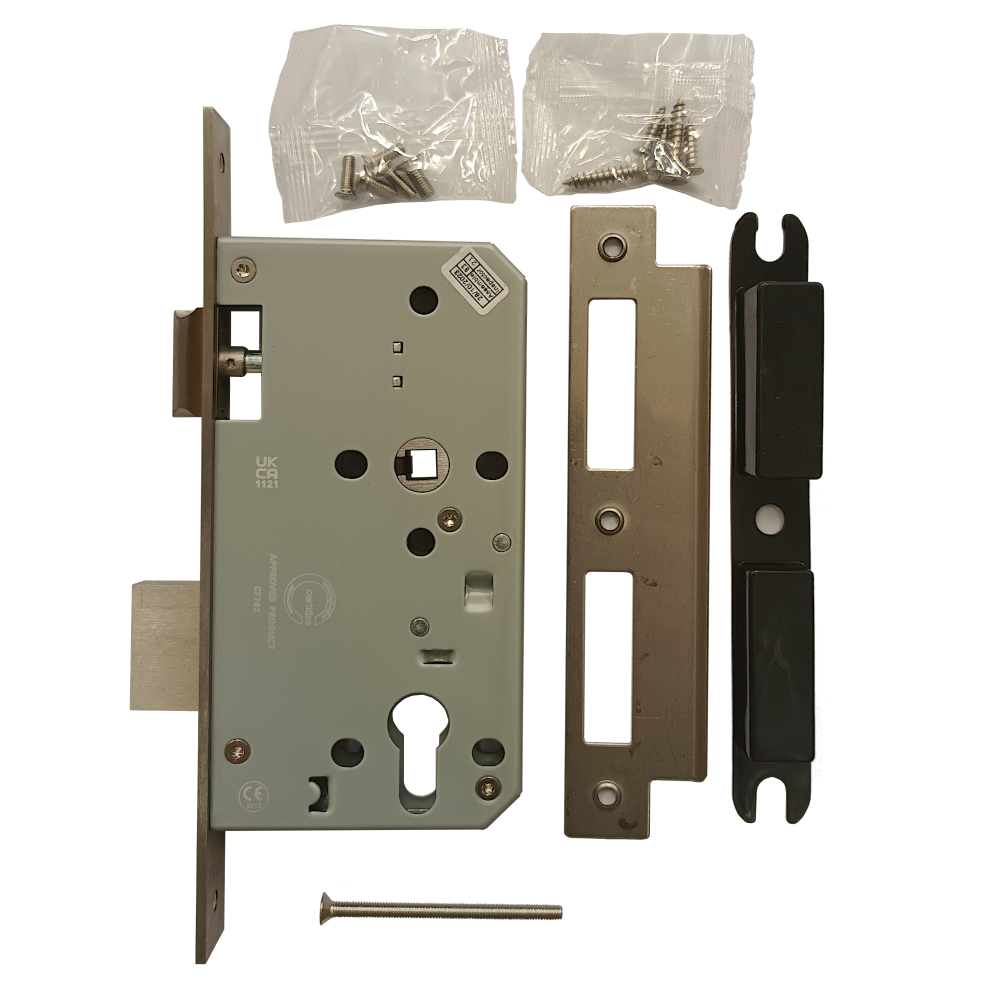

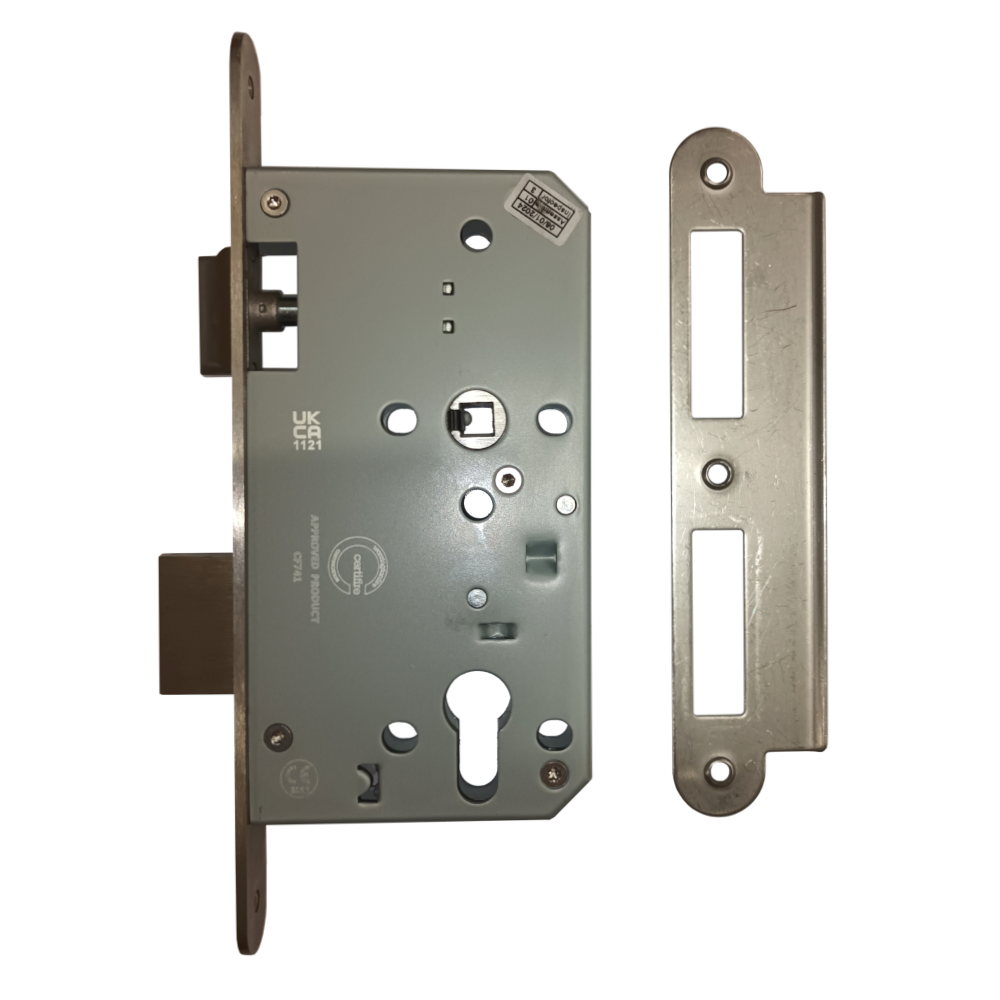

Briton 5420 DIN Euro Sashcase
Features
Heavy duty
Follower to cylinder 72mm
Based on the dimensional requirements of DIN18251
EN 12209
Included in a successful time test to EN 1634, CE marked
Grade 304 Stainless Steel with a Satin Finish
Finishes
Stainless Steel
Categories
Locking Product
Mortice Locks & Latches
Sashlocks
Cylinder - Euro
Our Briton 5420 DIN Euro Sashcase from Briton is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
Option Specifications
Backset
60mm
Bolt Throw
20mm
Case Height
165mm
Case Depth
89mm
Case Width
15mm
Centres
72mm
Finish
Stainless Steel
Forend Length
235mm
Forend Width
20mm
Handed
Reversible
Mechanism
Euro Cylinder
Pack Quantity
1
Spindle
8mm
Product References
L13625, L13624
Barcode References
5050640000057, 5050640000019
* Information above is accurate at the time of entry and may be subject to change at any time.
