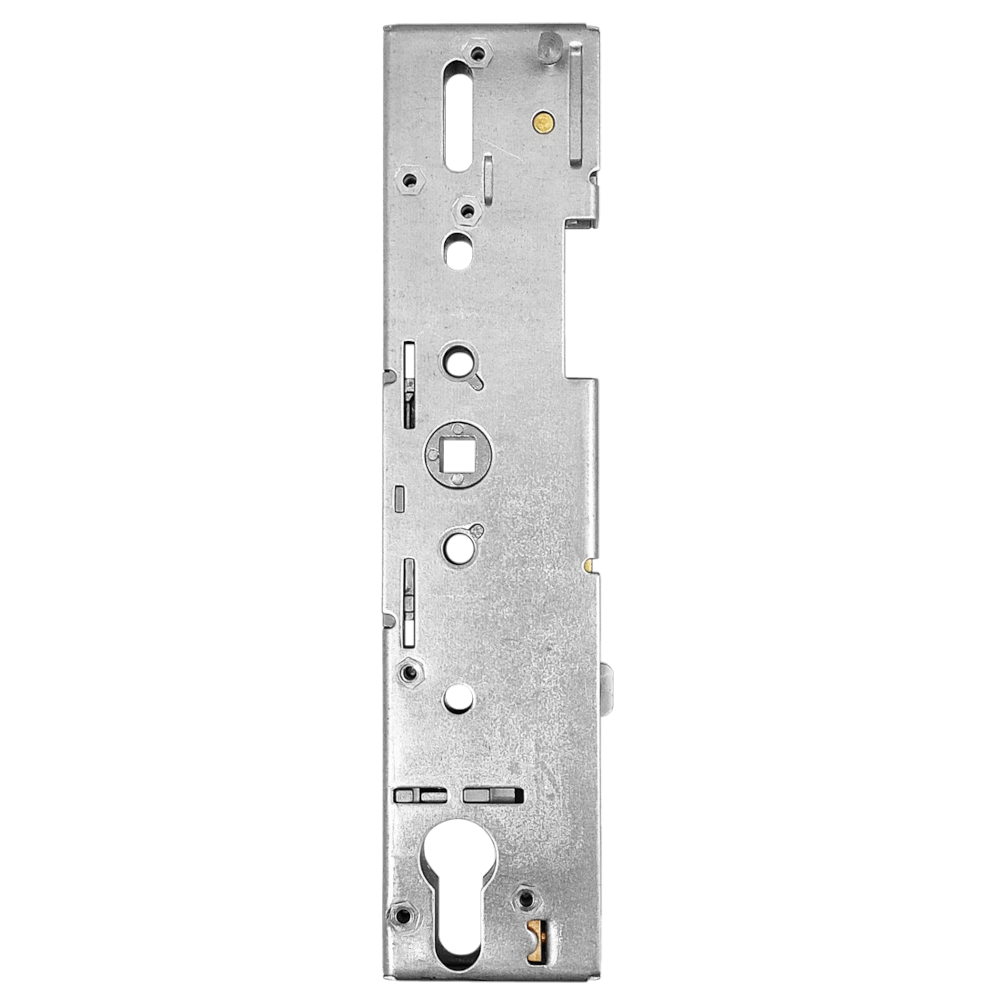

ERA Saracen Bifold French Door Passive Slave Gearbox With Large Air Gap

ERA Bi Fold passive slave gearbox with 35mm backset with 92mm centres. It has a single spindle centre case with a 220.5mm case height, 50mm case width and is designed to suit Warmcore and Liniar aluminium bi-folding doors, providing smooth and secure operation as part of a multipoint locking system. It offers a direct replacement for damaged or worn gearboxes within these specialist door setups, ensuring continued performance without the need for full strip replacement.


Handing
The latch can be reversed by removing the screws in the latch, taking the latch out, flipping it to the opposite hand, and refitting the screws.

Operation
Locking Method - A: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to lock. To unlock, turn the key one full turn and push the lever down.

Notes
Slave door gearbox with no latch or deadbolt.

ERA Saracen Bifold French Door Passive Slave Gearbox With Large Air Gap

Features

• Lever/Lever operation
• For passive side of French doors
• Connects to shoot bolt locking points
• 35mm backset
• 92mm centres

Categories

• Multi Point Locks
• Door
• Centre Case
• Gearbox
• Era

Our ERA Saracen Bifold French Door Passive Slave Gearbox With Large Air Gap from ERA is a quality tested product at a reasonably low price.

If you need any further information or are looking for an alternative size or similar item please contact us.
