Brand: ERA
ERA Vectis Hookbolt Centre Case And Slave Centre Case Keyed Alike
ERA Vectis Hookbolt Centre Case And Slave Centre Case Keyed Alike
By purchasing you are agreeing to our Terms of Sale.
Low stock: 2 left
Couldn't load pickup availability

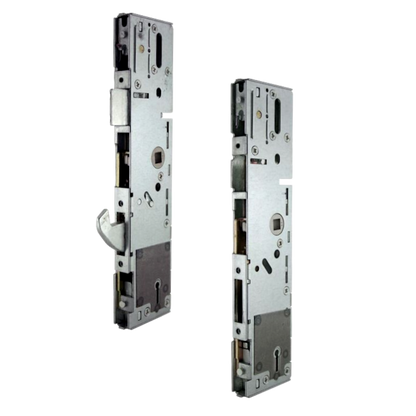

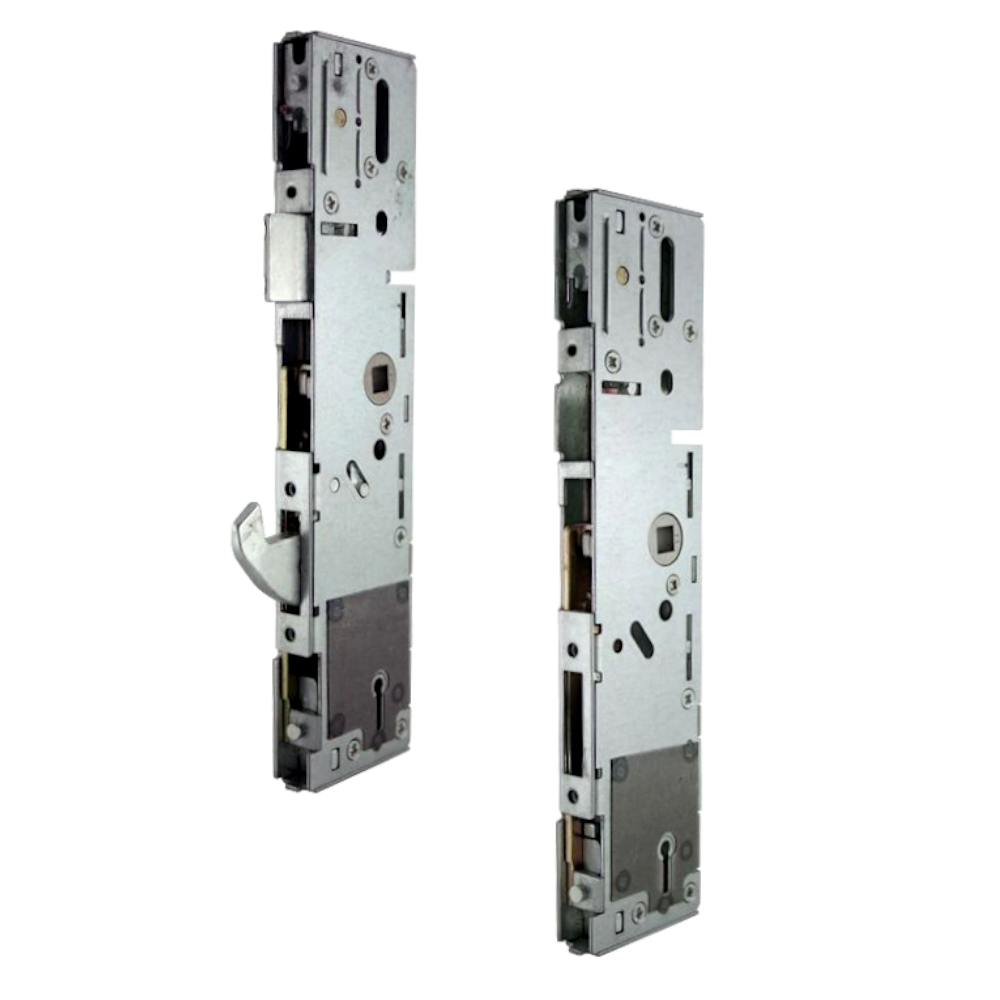

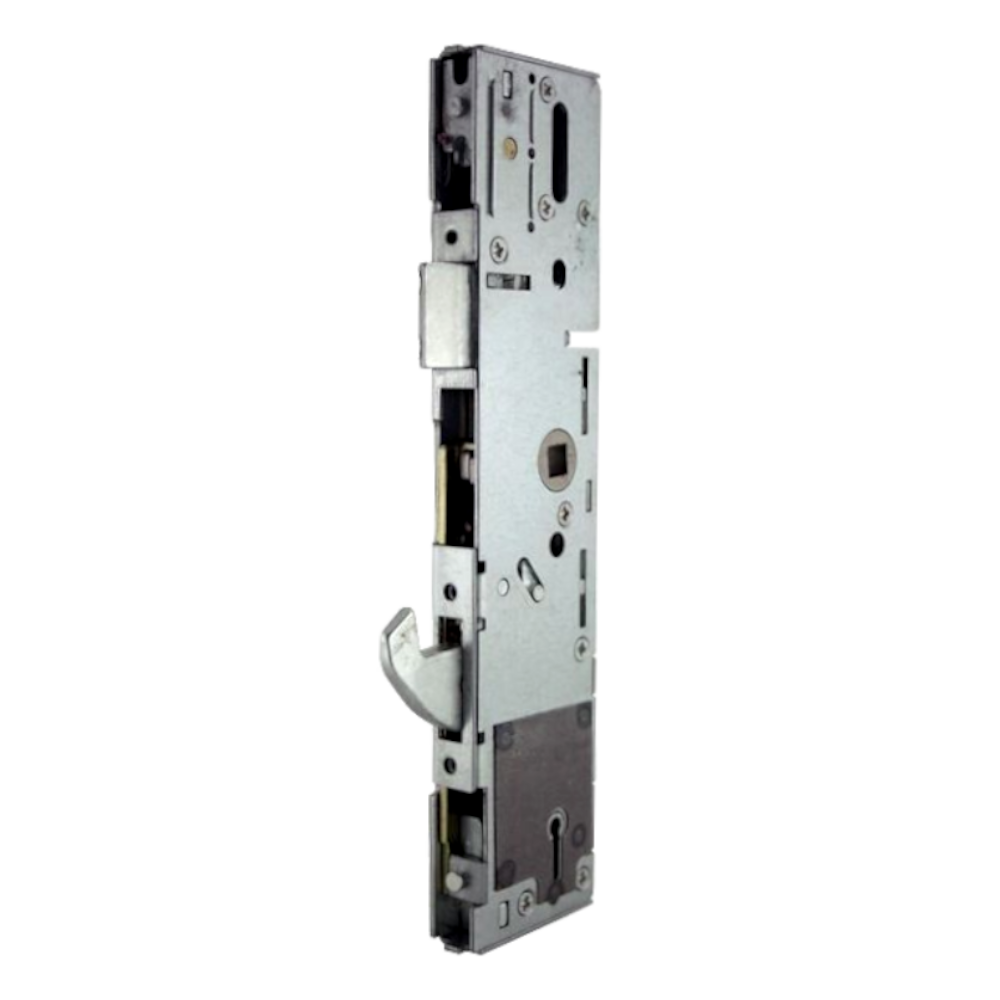

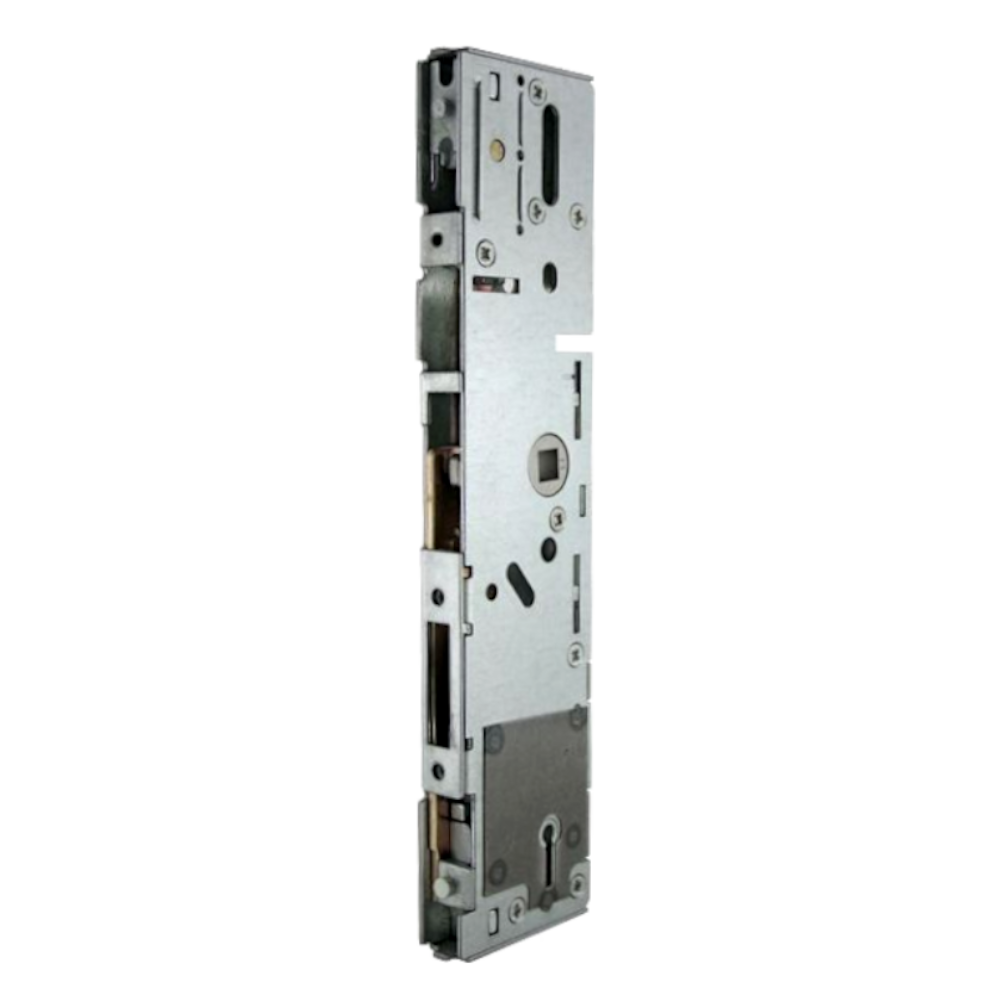

This keyed alike ERA Vectis centre case set includes a 35mm backset hookbolt gearbox for the master door and a 35mm backset slave gearbox for the slave door, complete with 3 mortice keys eliminating the need for a euro profile cylinder. No cylinder means the VECTIS PLUS is free from cylinder manipulation, breaking/snapping and plug extraction. The slave unit is designed for use on the passive leaf of a pair of French doors, security shootbolts then secure the lock into frame offering optimum compression at the top and bottom of the door.
The lock also incorporates a split spindle function to allow it to be used in either levers or lever pad handle applications. The gearbox is secured on a 16mm face bar making this lock an ideal choice for UPVC french door applications. The lock meets the requirements of BS EN 1670:2007 Grade 4 (240 hours) for corrosion resistance; and to ensure smooth and consistent performance over time the lock is endurance tested to 50,000 cycles.
ERA Vectis Hookbolt Centre Case And Slave Centre Case Keyed Alike
Features
- Can be used with lever/lever or lever/pad handles
- Can be suited to the Era Viscount range of mortice locks
- 3 mortice keys supplied
- Suitable for left or right handed doors
- Keyed alike centre case set - 1 x 35mm hookbolt and 1 x slave unit
- Slave unit used to drive shoot bolts
Categories
- Multi Point Locks
- Door
- Centre Case
- Gearbox
- Era
Our ERA Vectis Hookbolt Centre Case And Slave Centre Case Keyed Alike from ERA is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
Specifications | |
---|---|
Backset | 35mm |
Case Height | 220mm |
Case Width | 50mm |
Centre Case | Latch & Hookbolt With Separate Deadbolt Slave Unit |
Centres | 95mm |
Handed | Reversible |
Keyed | Keyed Alike |
Keys Supplied | 3 |
Mechanism | UK Mortice |
Spindle | Split |
Product References | L31978 |
Barcode References | 5056240122267 |
* Information above is accurate at the time of entry and may be subject to change at any time. |
