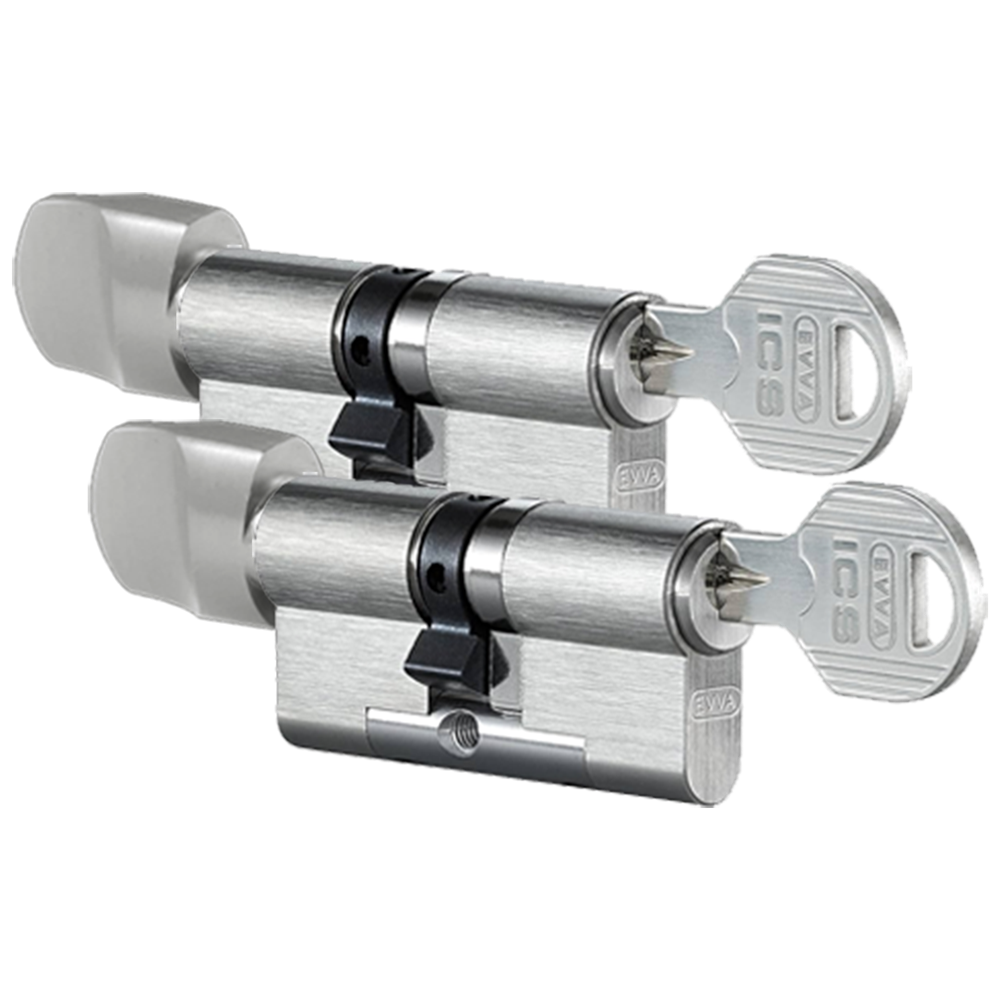

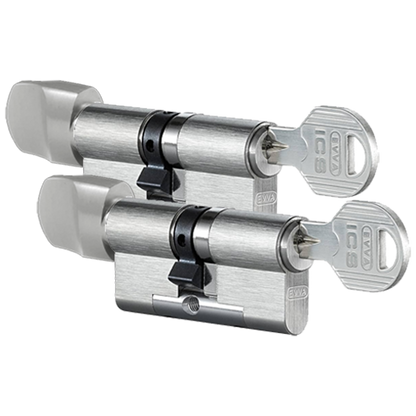

EVVA ICS Keyed Alike Pair KDZ Key & Turn Euro Cylinder 6 Keys TS007 3*

These EVVA ICS KDZ euro key & turn cylinders are TS007 3* rated and supplied as a keyed alike set on our in-house section, it has a standard euro profile and is supplied complete with a connecting screw.

ICS is a durable, patent protected reversible key system designed with maximum keying potential in mind so master key systems can be planned ahead to take into account potential extensions. The system contains a wide variety of cylinders covering virtually any application and offers both legal and technical key protection mechanisms to ensure a high degree of protection against key copying.

---

Optional Special Features Available

SOS - Clutch Cam (Anti-Barricade)
Thumbturn is disengaged when a key is inserted on the outside allowing access even if turn is blocked or held.

BSI - 3* Snap Resistant
Bump and snap resistant cylinders Kitemarked on the external anti snap side only with the 3*** logo.

Z - Cog Wheel Cams
Designed for use with multi-point locks or specialist mortice locks that are operated via a gear ring or a toothed rack, they can be supplied with 10, 13, 14 or 18 teeth instead of a standard cam.

CLA - Classroom Function
Thumbturn can only be rotated in one direction (reversible) so that a door can only be unlocked from the inside, it is supplied with SOSE as standard.

SSW - All Weather Cover
Spring loaded shutter plates mounted on the outside of the cylinder open and close when the key is inserted or removed. NB - adds 5mm to cylinder length.

TXT - Additional Numbering
Specific numbering or sequential numbering on keys to allow the end user to keep track of issued keys and highlight losses.

SEW - Sea Water Protections
For cylinders that are exposed to more severe environmental influences, corrosion-susceptible cylinder parts are supplied with a special surface treatment; this comes as standard for Aldridge cylinders.

NS - Nickel Silver Plug
Ideal for use on high use cylinders such as communal entrances where cylinders are used far more often.

FLEX - Adapted Entry
One or both sides of the cylinder can be operated via Square, Triangle, Hexagon or slot feature, e.g. one side could be opened with a key and the other by an 8mm socket.

ZVS - Retracted Cylinder Body
For use in special metal framed doors with integrated security roses.

ARS - Plug Pulling Protection
A special nickel silver cam connects to the plugs on both sides to protect from plug pulling attempts.

KZS - Plug Pulling Protection
Carbide components in the plug protect against plug pulling attempts.

Please contact us for more information.

EVVA ICS Keyed Alike Pair KDZ Key & Turn Euro Cylinder 6 Keys TS007 3*

Features

• Supplied as a keyed alike pair
• Patented & registered system
• Reversible key system
• High degree of protection against key copying
• Ideal for master key systems
• BSI Kitemarked - guarantee quality and safety

Finishes

• Nickel Plated

Categories

• Locking Product
• Cylinders
• Keyed Alike Cylinders

Our EVVA ICS Keyed Alike Pair KDZ Key & Turn Euro Cylinder 6 Keys TS007 3* from Evva is a quality tested product at a reasonably low price.

If you need any further information or are looking for an alternative size or similar item please contact us.

Option Specifications
Body Length	92mm, 72mm, 102mm, 82mm
Cylinder Size Overall	46/T46, 41/T51, 36/T36, 51/T51, 41/T41
Cylinder Size With Cam	41/10/T41, 36/10/T46, 31/10/T31, 46/10/T46, 36/10/T36
Finish	Nickel Plated
Fire Tested	Yes
Keyed	Keyed Alike Pair
Keys Supplied	6
Length	92mm, 72mm, 10.2cm, 82mm
Mechanism	10 Pin
Pack Quantity	2
Standards	BS EN 1634,BS EN 1303:2005
A Side	46mm, 41mm, 36mm, 51mm
B Side	46mm (Turn), 51mm (Turn), 36mm (Turn), 41mm (Turn)
Product References	L35967M, L35971M, L35963M, L35969M, L35965M
Barcode References	5056240151670, 5056240151717, 5056240151632, 5056240151694, 5056240151656
* Information above is accurate at the time of entry and may be subject to change at any time.
