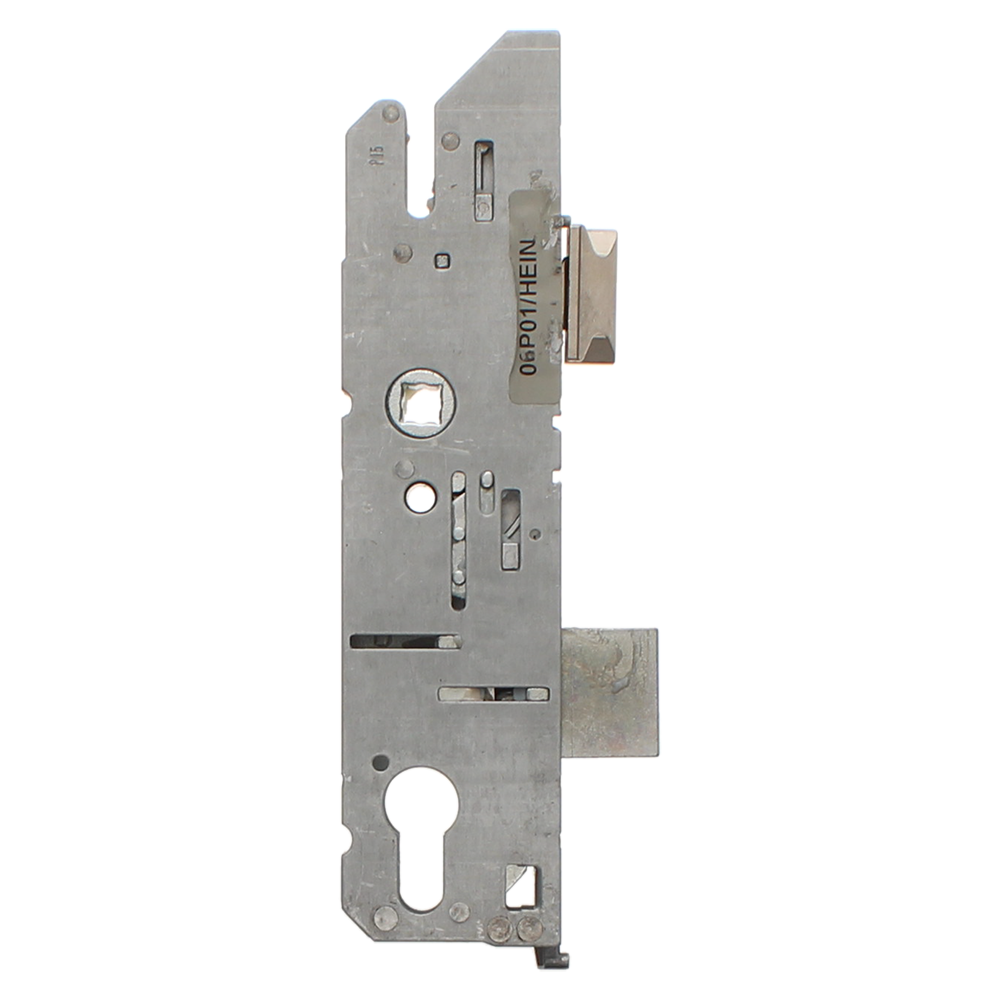

• FUHR 833 Auto Latch With Deadbolt Gearbox 35/92

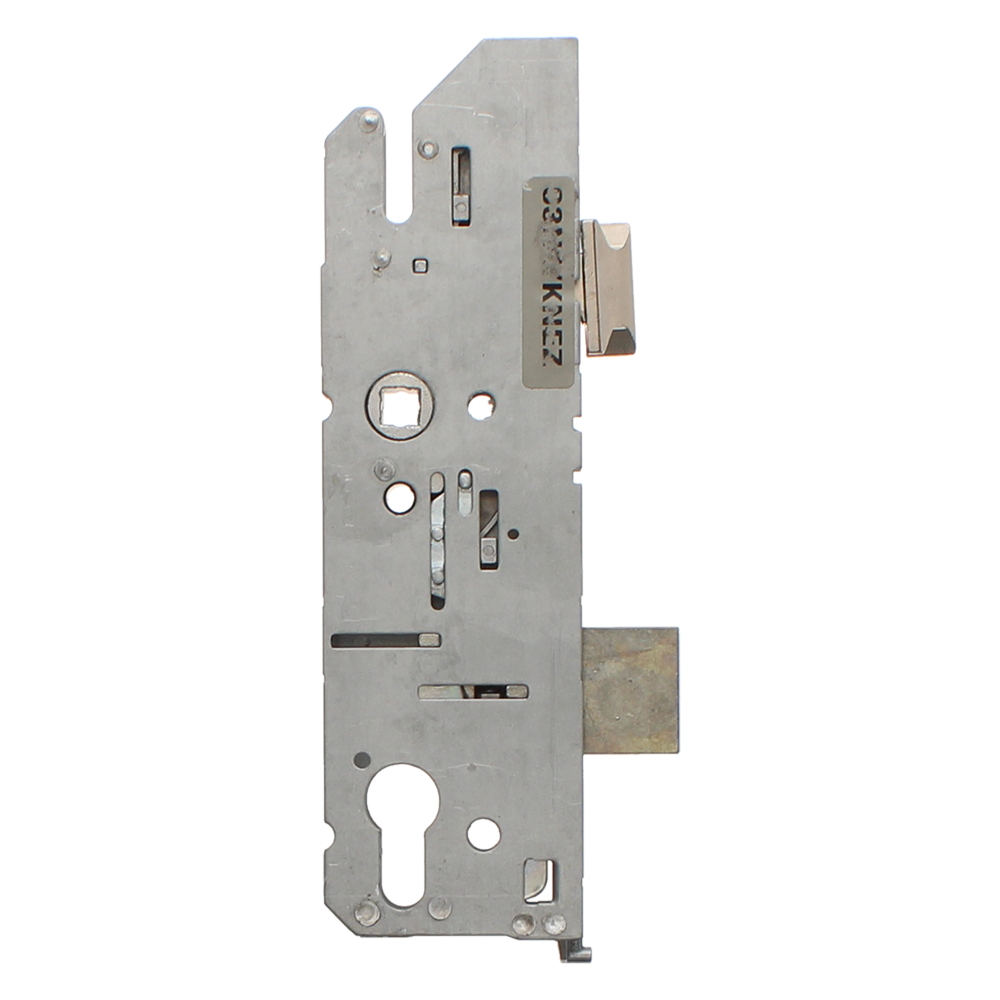

  • FUHR 833 Auto Latch With Deadbolt Gearbox 45/92
1 1

Brand: Fuhr

FUHR 833 Auto Latch With Deadbolt Gearbox

FUHR 833 Auto Latch With Deadbolt Gearbox

£172.44
£0.00 £172.44
Sale Sold out

By purchasing you are agreeing to our Terms of Sale.

Low stock: 8 left

Style

This Fuhr 833 auto locking gearbox has a 35mm or 45mm backset with 92mm centres. It is a split spindle centre case with a 220mm case height and a 53mm or 63mm case width.

It is designed for use with the automatic locking 833 multipoint system and is to be used with a lever and fixed pad handle set.


Handing
The latch can be reversed by locating the Allen screw on the side of the lockcase in line with the latch. Remove the screw, pull out and reverse the latch, then refit the Allen screw.

Operation
Closing the door automatically engages the latch bolts. To open from outside turn the key to retract the locking points; from inside use the lever handle to retract the locking points. The centre deadbolt is locked/unlocked by turning the key.

FUHR 833 Auto Latch With Deadbolt Gearbox

Features

  • Auto locking latch
  • Deadlock bolt
  • 92mm centres
  • Use with lever/fixed pad handles
  • Choice of backset

Categories

  • Multi Point Locks
  • Door
  • Centre Case
  • Gearbox
  • Fuhr

Our FUHR 833 Auto Latch With Deadbolt Gearbox from Fuhr is a quality tested product at a reasonably low price.

If you need any further information or are looking for an alternative size or similar item please contact us.

Option Specifications
Backset 45mm, 35mm
Case Height 220mm
Case Depth 63mm, 53mm
Centre Case Latch & Deadbolt
Centres 92mm
Handed Reversible
Mechanism Euro Cylinder (not included)
Pack Quantity 1
Spindle Split
Product References L37928, L37927
Barcode References 5056240166780, 5056240166773
* Information above is accurate at the time of entry and may be subject to change at any time.
