HAYDON MARKETING CCTV Boxed Power Supply Multi Way Flexible Up To 9 Way 12VDC Max Output 5 Amp

The HAY-PSUMULTI-5A is a robust 12V DC power supply unit designed to support up to nine CCTV cameras or related devices. It delivers a total output of 5A, with outputs 1 to 4 each rated at 1.6A and outputs 5 to 9 each rated at 1.1A, ensuring efficient power distribution across connected equipment. Each output is equipped with an LED indicator to display its status, facilitating easy monitoring and maintenance.

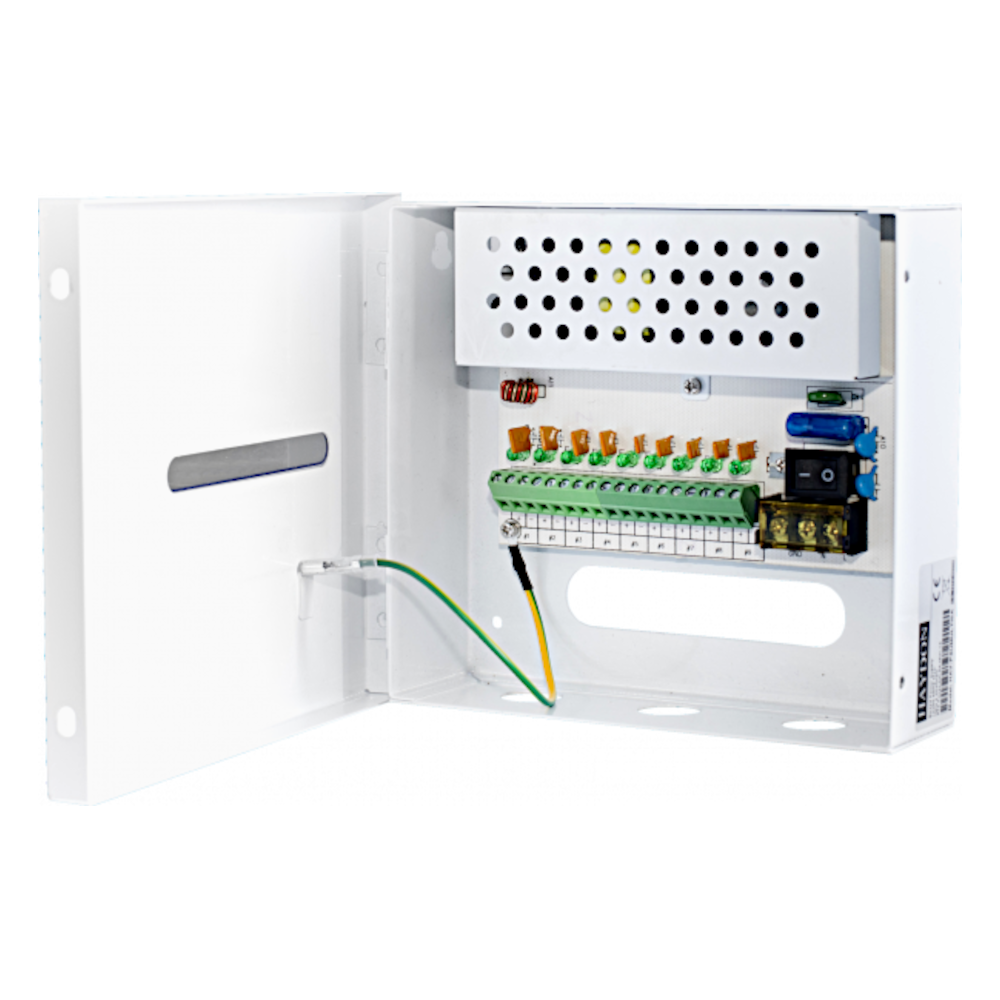

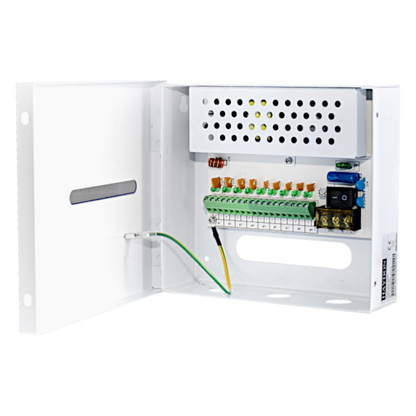

Housed in a durable metal enclosure measuring 180mm x 165mm x 52 mm, the unit features individual auto-reset PTC fuses for each output, providing overcurrent protection and eliminating the need for manual fuse replacement.

The power supply also includes surge protection to safeguard connected devices from voltage spikes. has an internal power on/off switch allows for convenient control during installation and servicing and is compliant with RoHS and CE standards.

HAYDON MARKETING CCTV Boxed Power Supply Multi Way Flexible Up To 9 Way 12VDC Max Output 5 Amp

Features

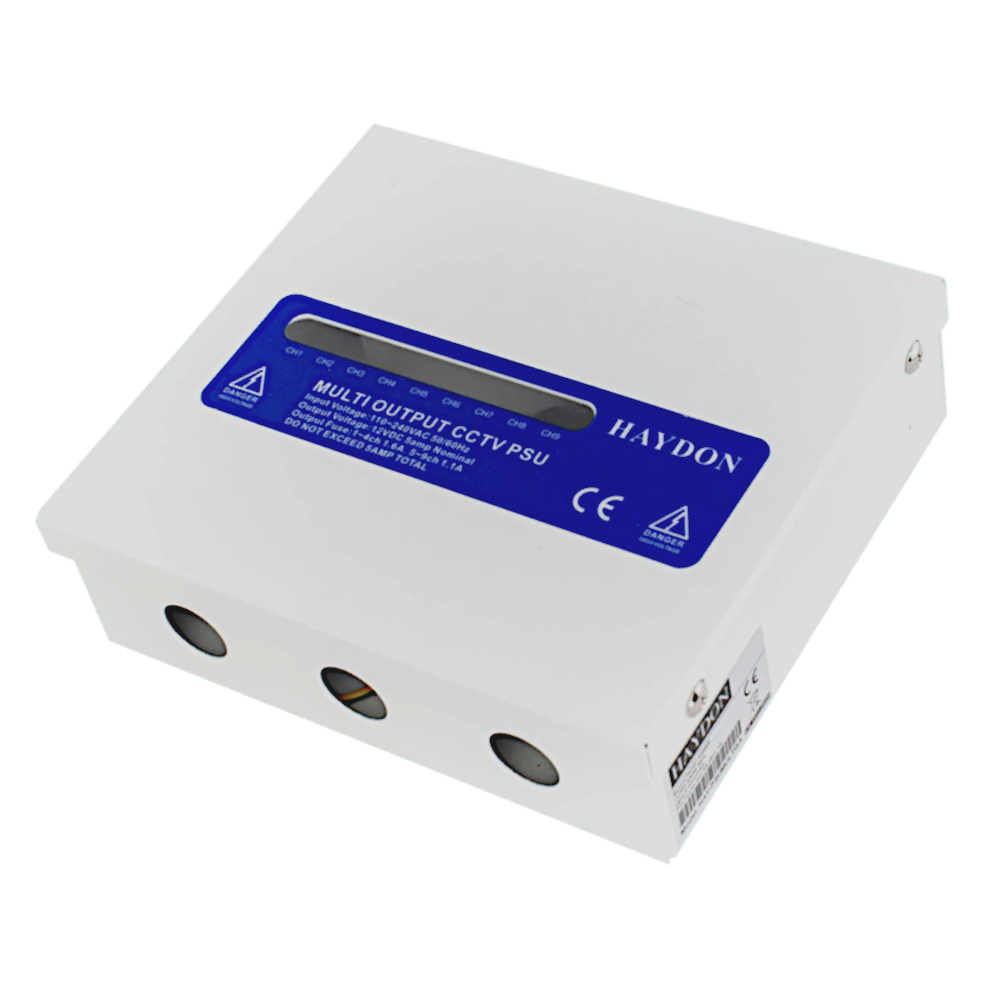

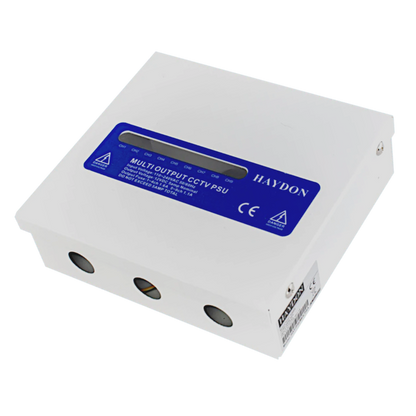

• Clear front panel slot to see if outputs are live
• PTC resettable fuses
• Up to 9 x 12VDC outputs
• Surge protected
• Individual LED output indicator
• 5 Amps total maximum output

Finishes

• White

Categories

• Access Control
• Accessory
• Power Supply
• Haydon Marketing

Our HAYDON MARKETING CCTV Boxed Power Supply Multi Way Flexible Up To 9 Way 12VDC Max Output 5 Amp from Haydon Marketing is a quality tested product at a reasonably low price.

If you need any further information or are looking for an alternative size or similar item please contact us.
