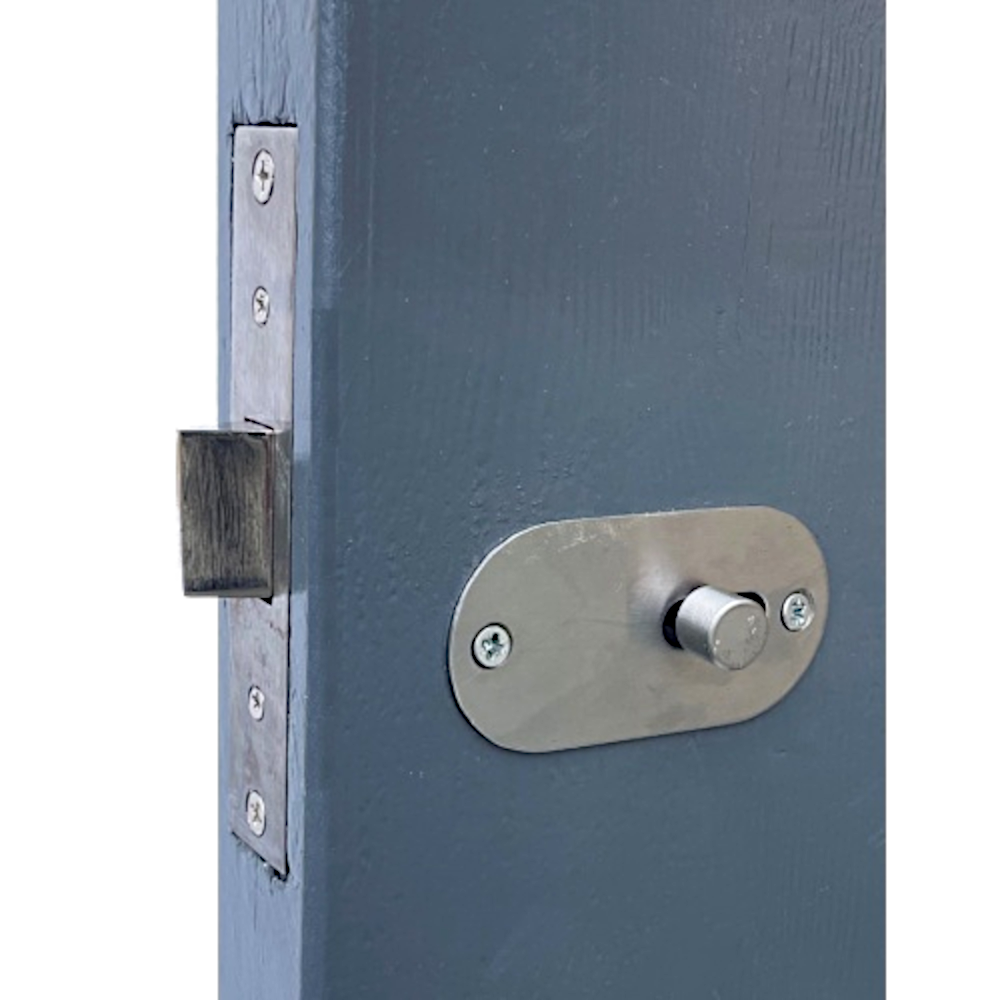

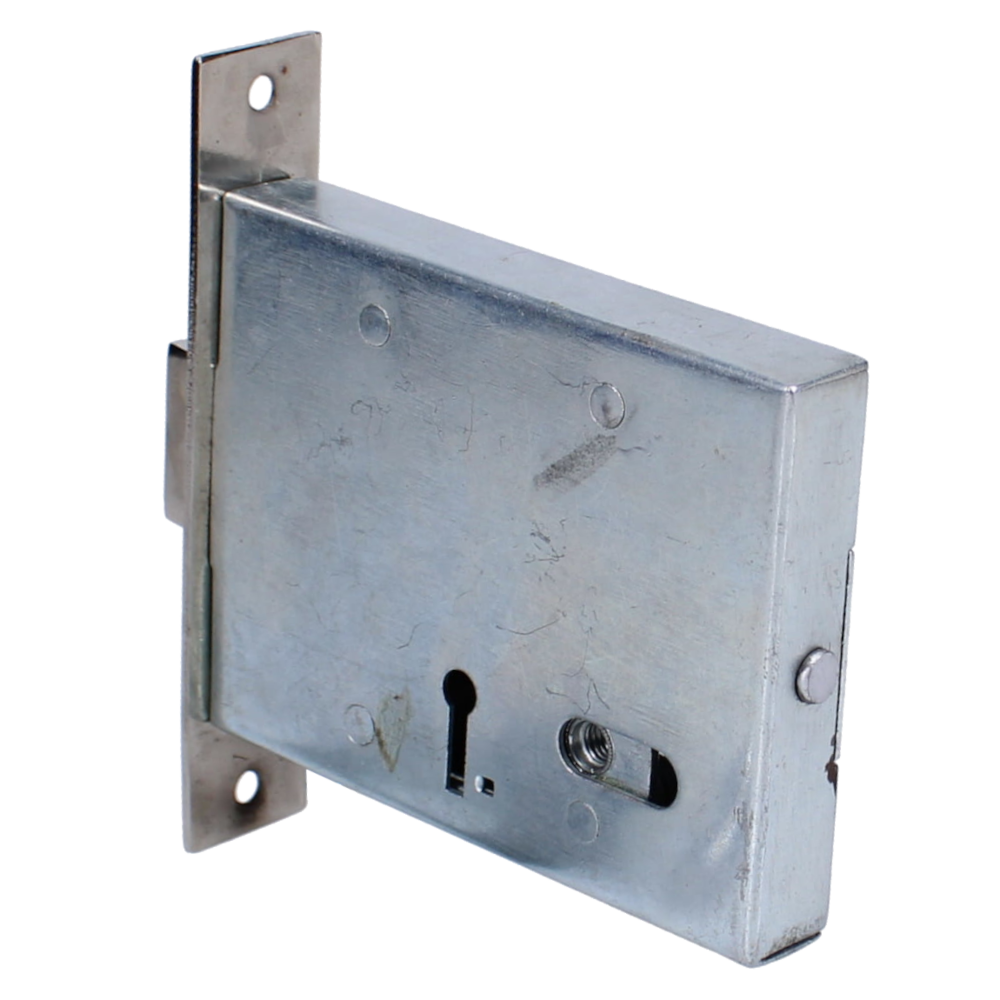

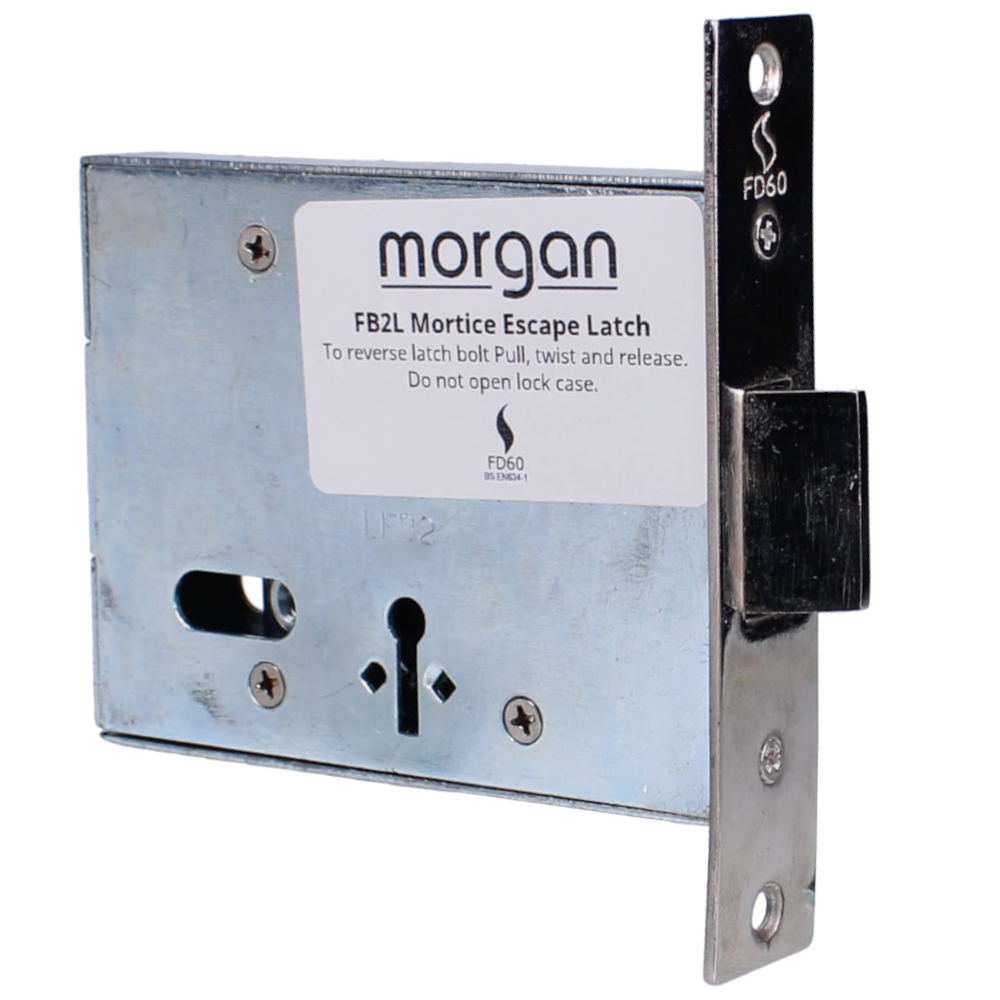

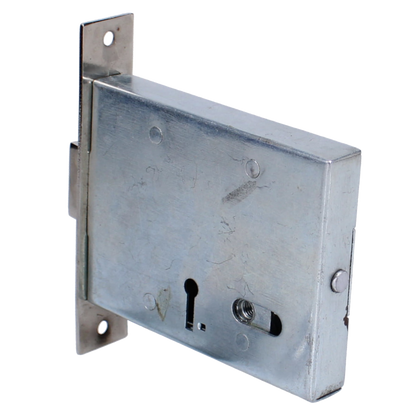

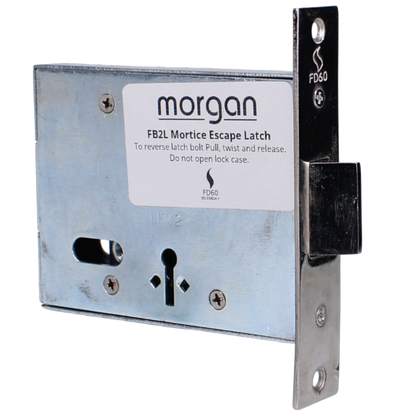

This FBL mortice escape latch by T Morgan & Sons can be operated from either side by using the applicable FB key or for keyless escape the slide latch can be fitted with the oversized escutcheon to cover the existing keyhole. It comes in a choice of versions to suit FB1 or FB2 keys and is supplied without any keys.
When used with an IP60LA intumescent pack this latch is suitable for timber fire doors and is 60 minute fire rated to BS EN1634-1. Please note that the intumescent pack is not included and needs to be ordered separately.
MORGAN FBL Mortice Escape Latch
Features
Choice of versions to FB1 or FB2 key
Supplied without keys
60 minute fire rated to BS1634-1 when fitted with intumescent kit IP60LA (Not included))
Operates by key both sides or key and thumb slide from either side
Backset 52mm

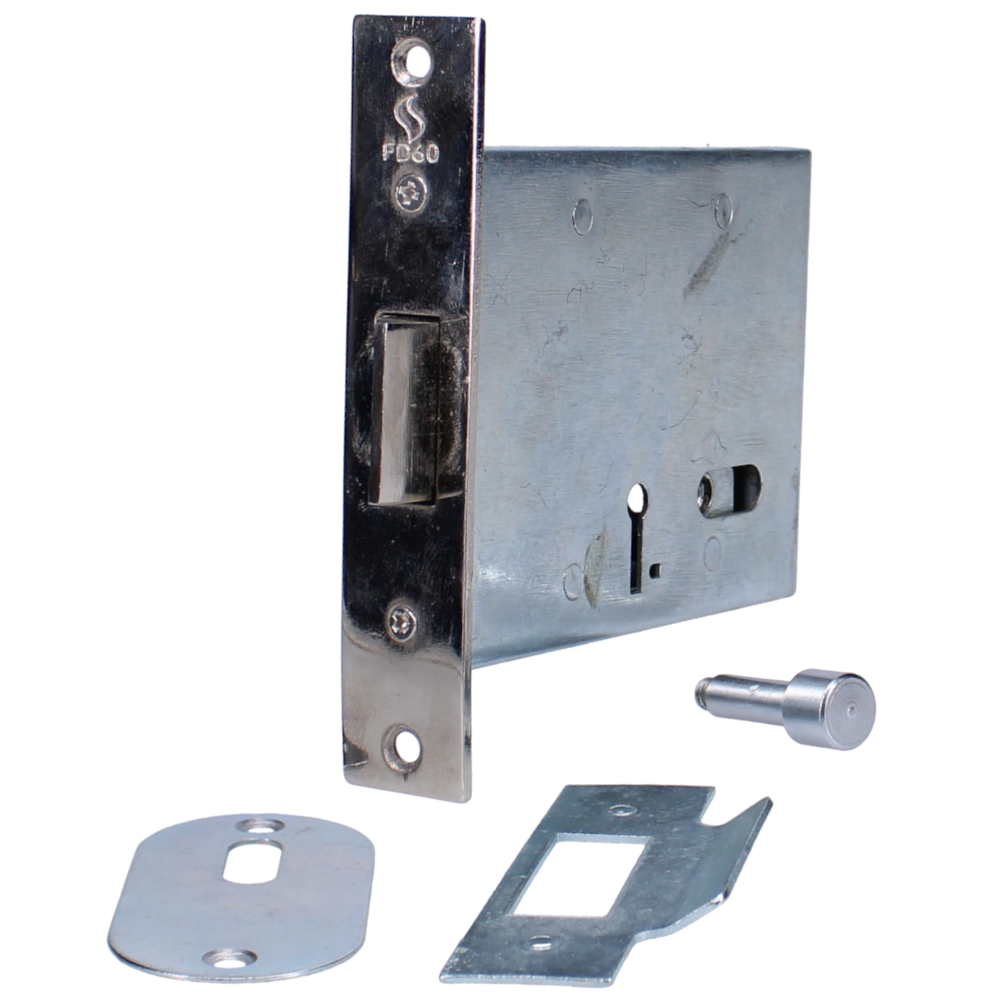

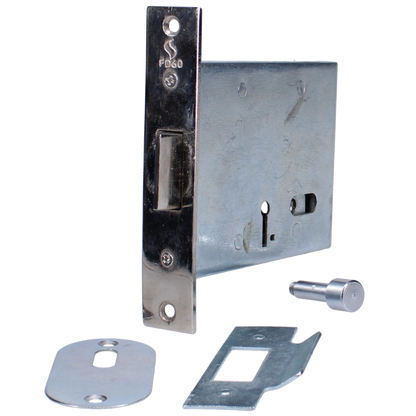

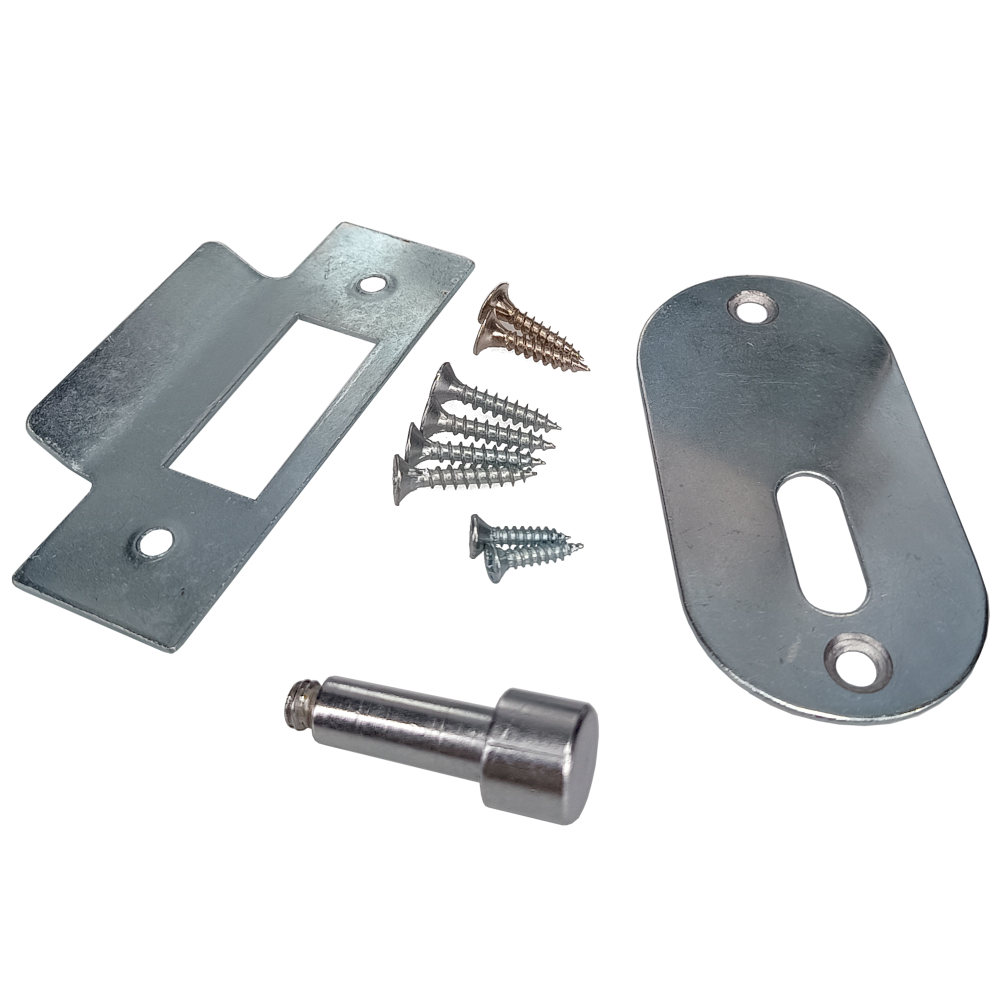

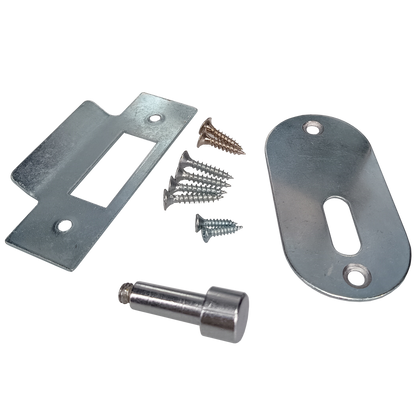

Thumb slide, escutcheon, strike plate, screws and fitting template included
Finishes
Silver
Categories
Locking Product
Fire Brigade Locks
Our MORGAN FBL Mortice Escape Latch from Morgan is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
Option Specifications
Backset
52mm
Case Height
78mm
Case Depth
110mm
Case Width
15mm
Finish
Silver
Forend Length
118mm
Forend Width
22mm
Keyed
Keyed Alike
Mechanism
2 Lever
Pack Quantity
1
Standards
BS EN 1634-1
Product References
L36452, L36451
Barcode References
5056240154046, 5056240154039
* Information above is accurate at the time of entry and may be subject to change at any time.
