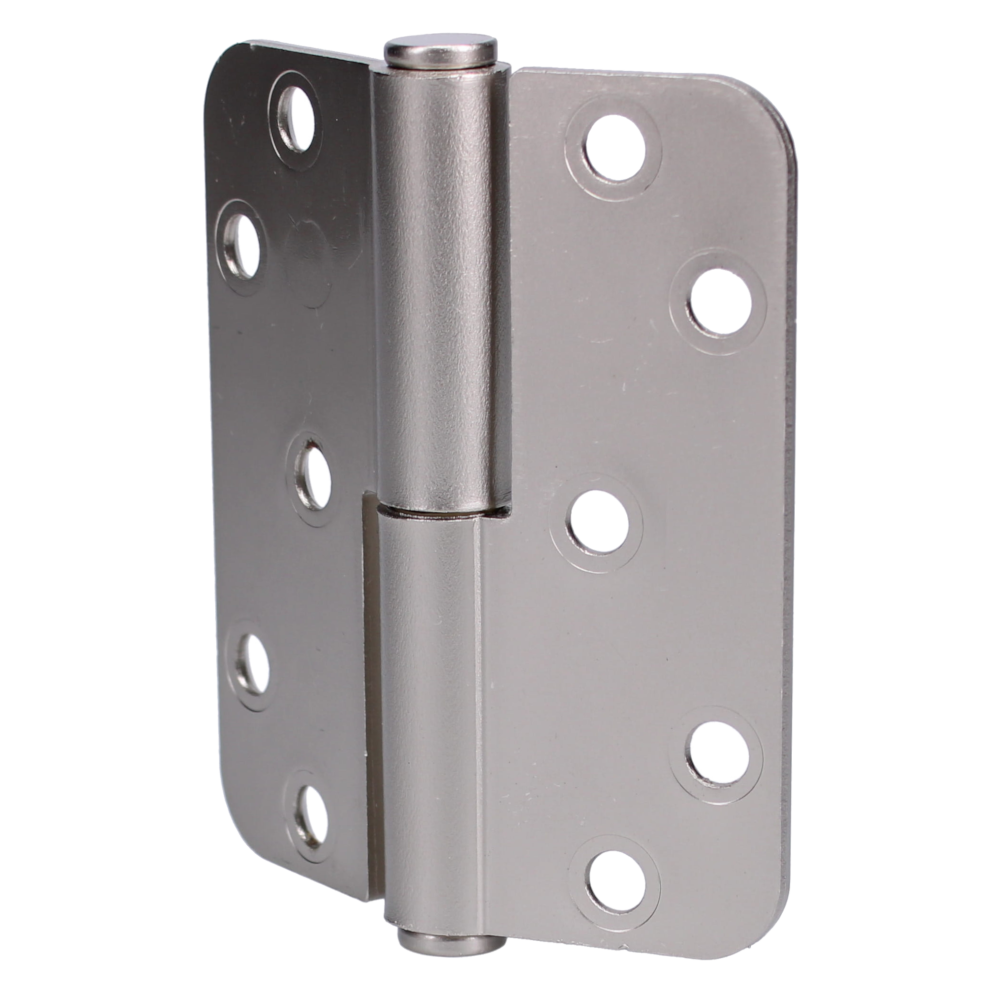

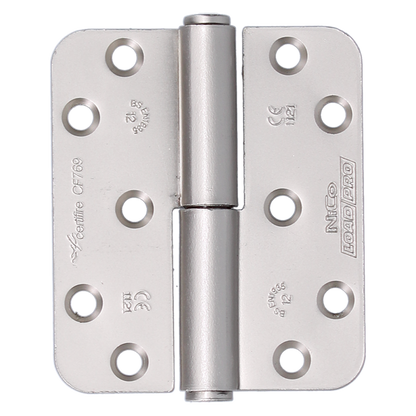

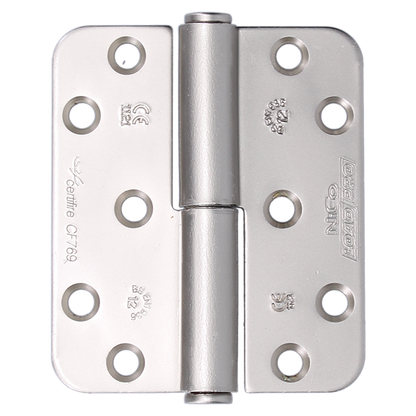

The Nico 4717 LoadPro Lift-Off fire rated hinge is designed to support fire doors up to 100kg in weight while maintaining fire safety compliance. Constructed from high-performance materials, this hinge features a lift-off design that allows for easy door removal and installation and is tested and certified to meet FD30 and FD60 fire rating standards. This EN 1935: 2002 Grade 12 hinge has a self lubricating polymer bearing for smooth operation and is ideal for commercial, institutional, and high-traffic applications.

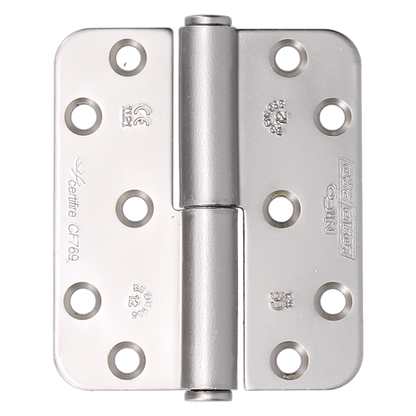

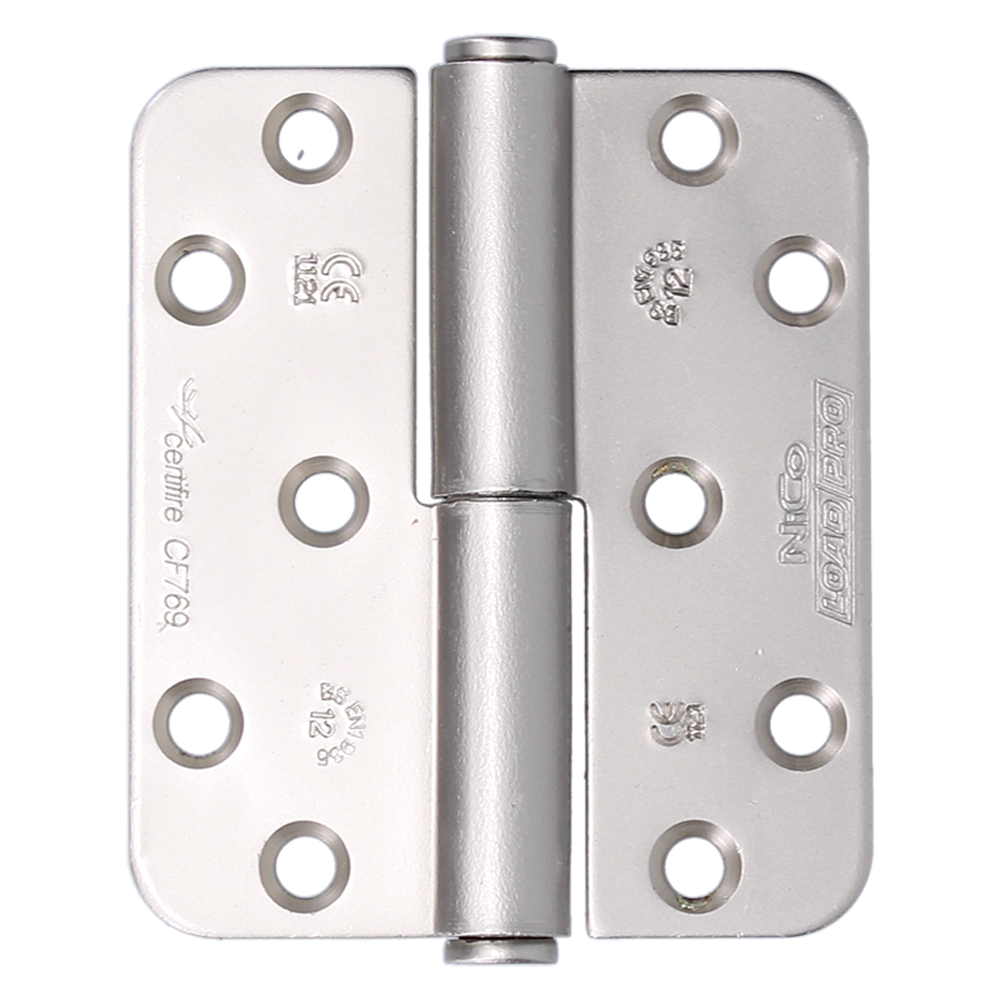

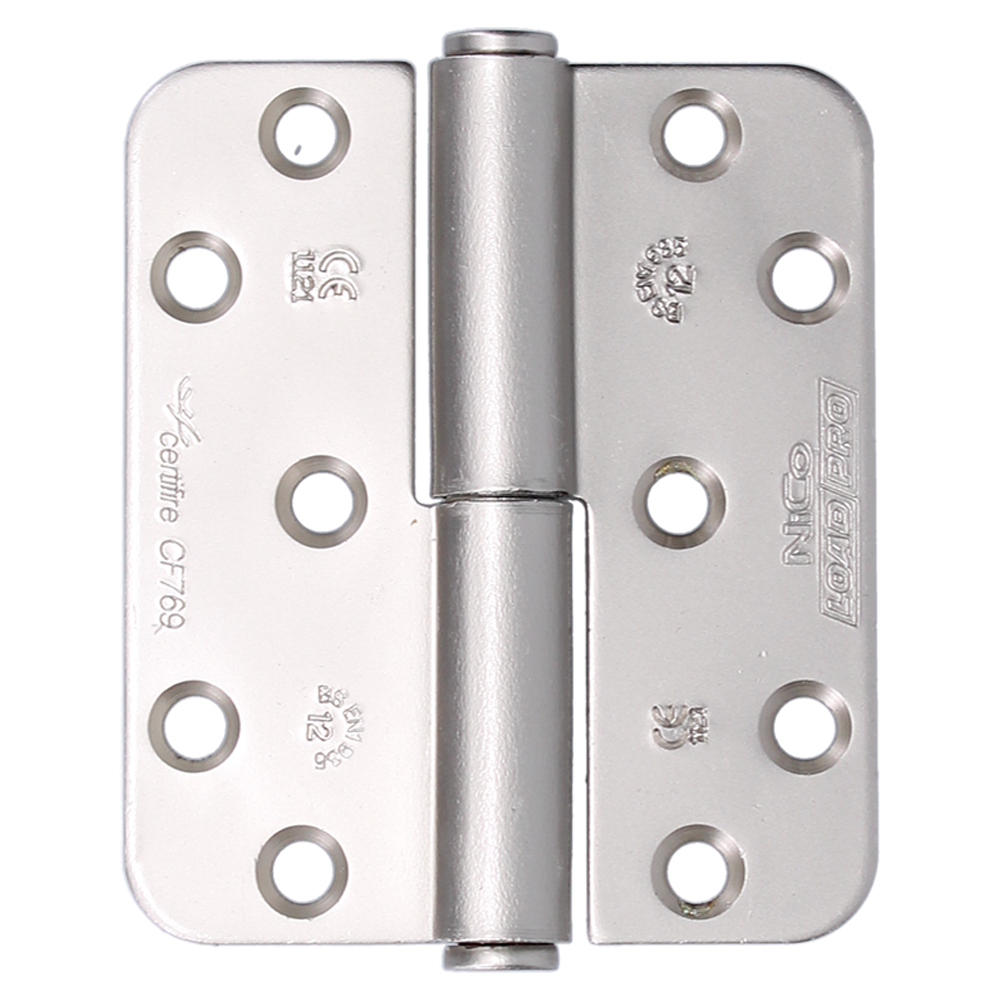

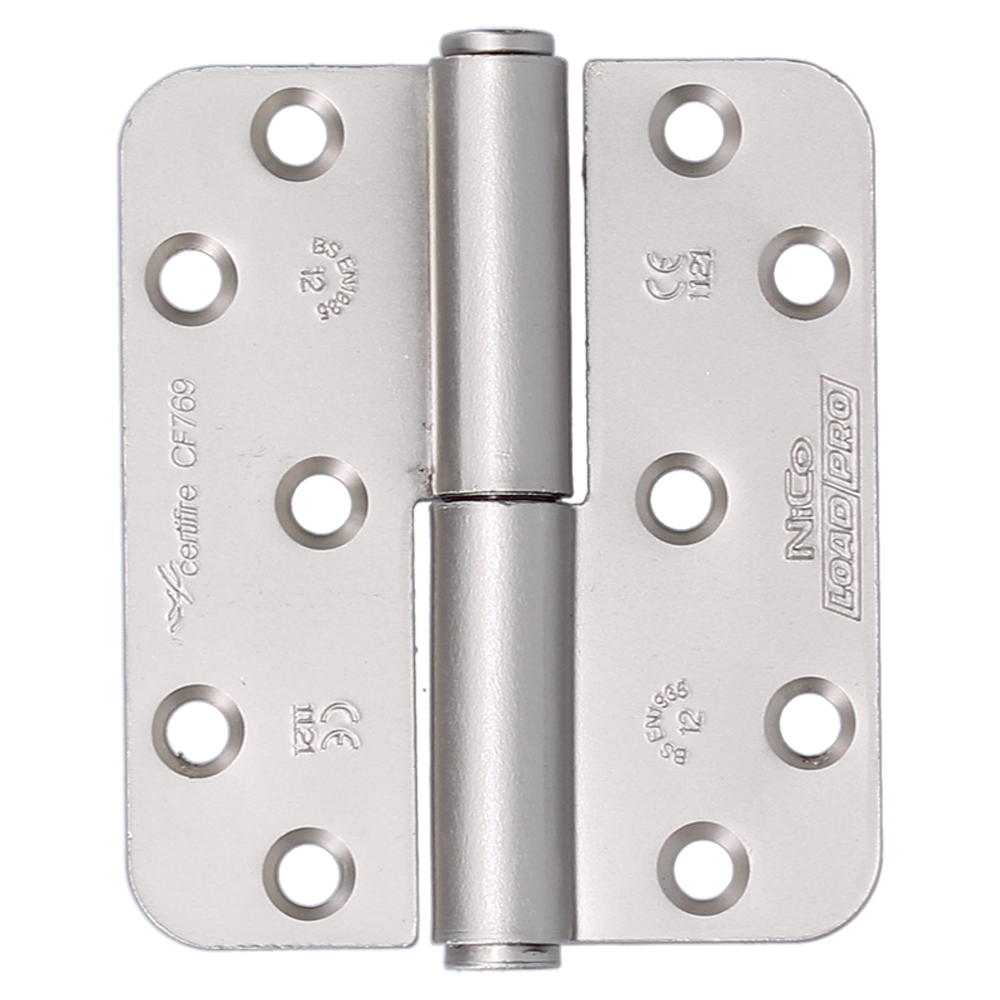

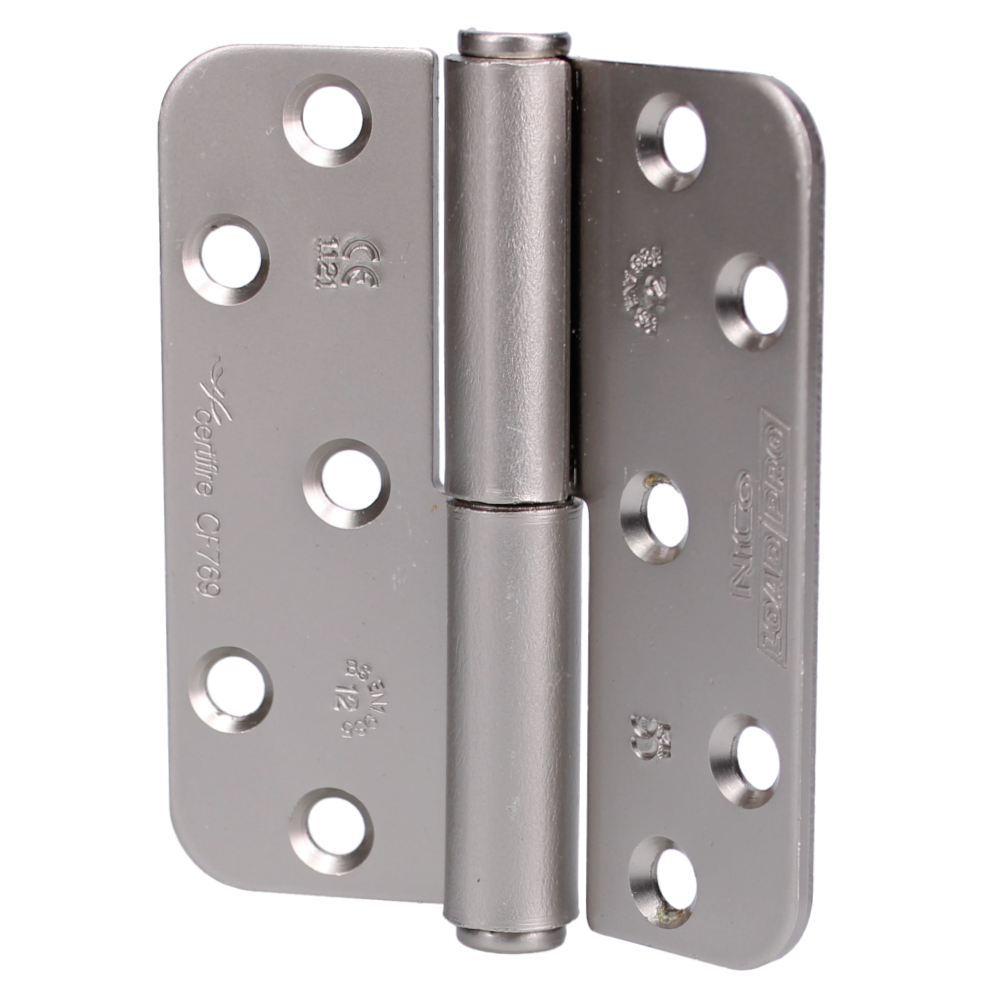

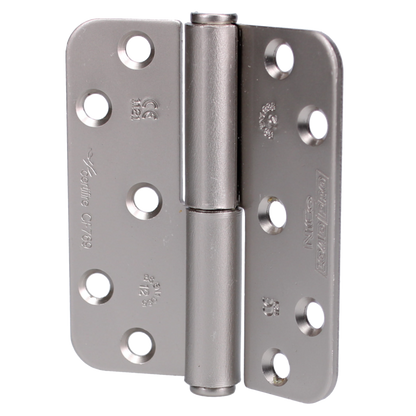

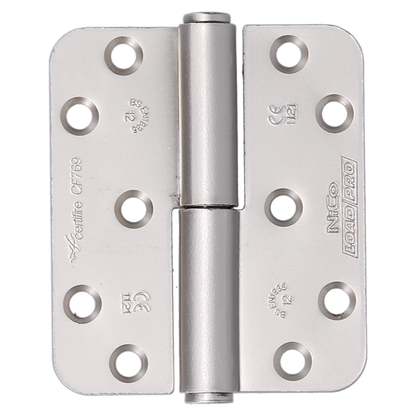

NICO Hinge 4717 Load Pro Lift Off Fire Rated Single Hinge Handed
Features
Easy alignment of frame and door leaf during fitting
Suitable for fire doors up to 100kg
Self lubricating polymer bearing
Recommended minimum door thickness of 44mm
25 year mechanical guarantee
Screws included (10 x 1 1/4")
Finishes
Satin Nickel
Categories
Architectural Hardware
Hinge
Butt
Our NICO Hinge 4717 Load Pro Lift Off Fire Rated Single Hinge Handed from NiCo is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
Option Specifications
Depth
3mm
Height
98mm
Width
84mm
Finish
Satin Nickel
Handed
Right Hand, Left Hand
Max Door Weight
100Kg
Pack Quantity
1
Standards
UK Conformity Assessed (UKCA),Certifire,CE Marked,BS EN 1935:2002 - Grade 12
Product References
L36901, L36900
Barcode References
5056240157337, 5056240157320
* Information above is accurate at the time of entry and may be subject to change at any time.
