Brand: Videx

VIDEX 506T 12V/24V AC/DC Relay With Timer

VIDEX 506T 12V/24V AC/DC Relay With Timer

£62.57
£0.00 £62.57
Sale Sold out

By purchasing you are agreeing to our Terms of Sale.

Low stock: 1 left

Style

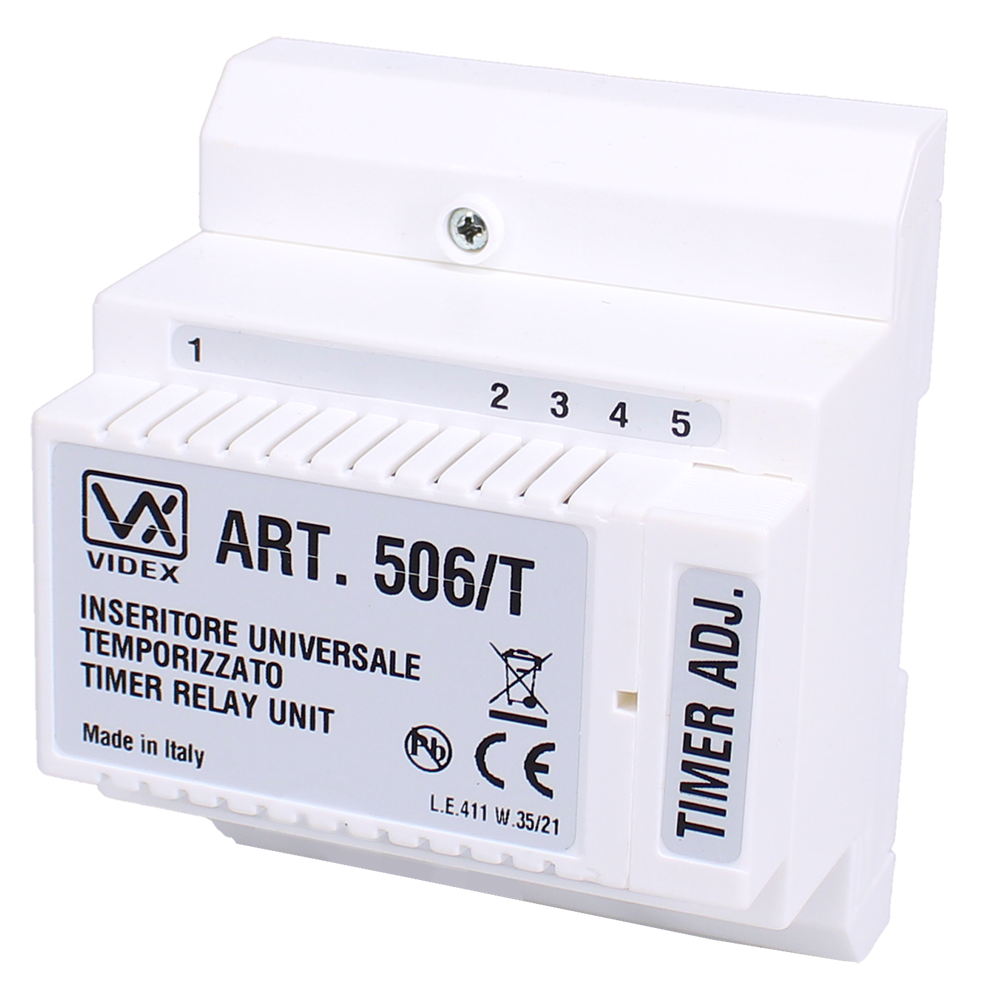

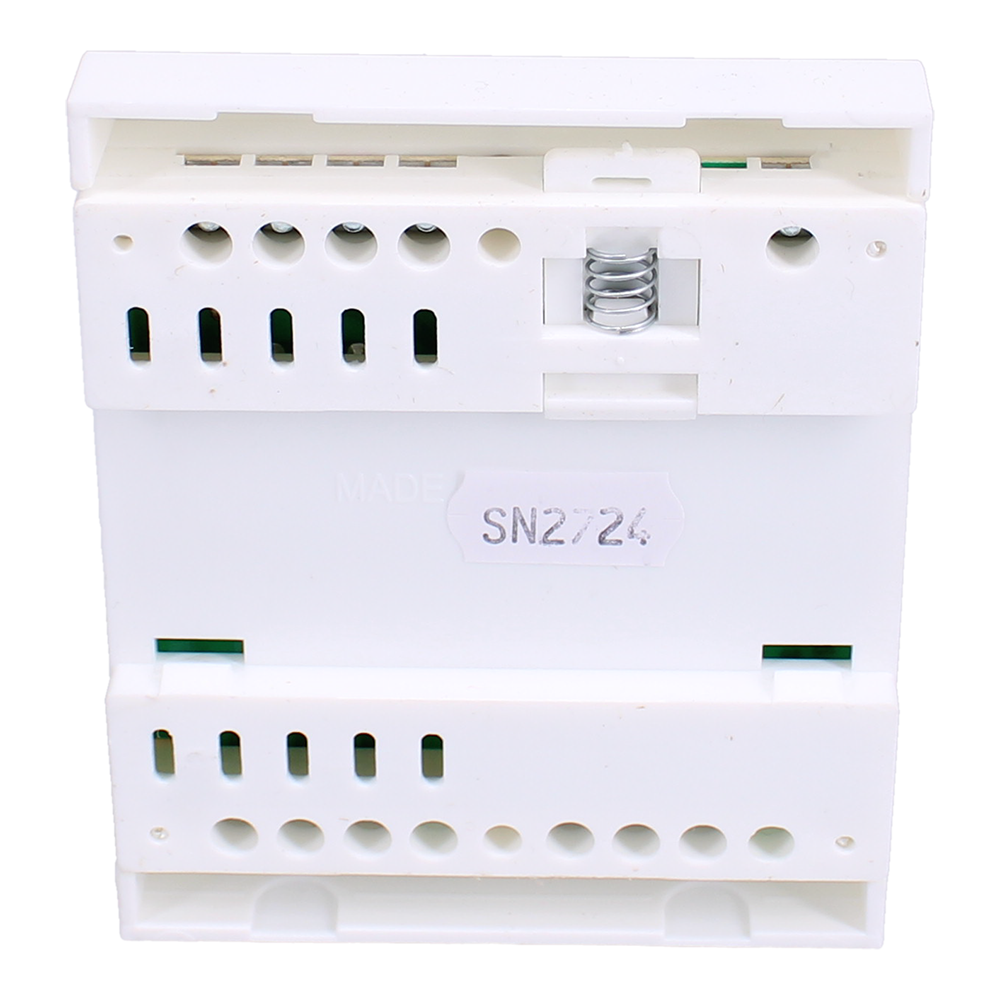

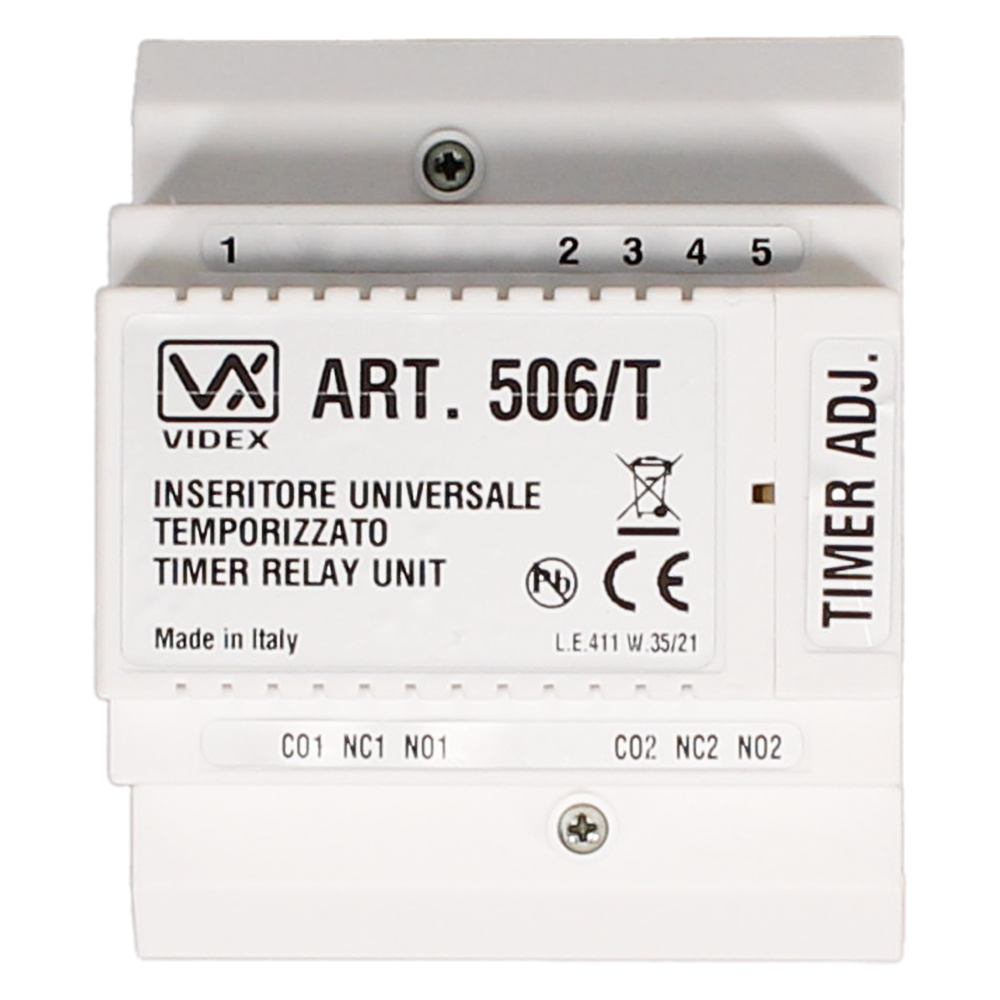

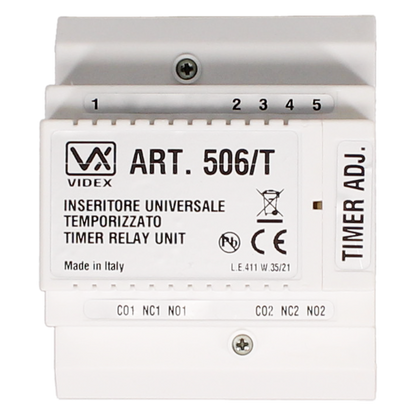

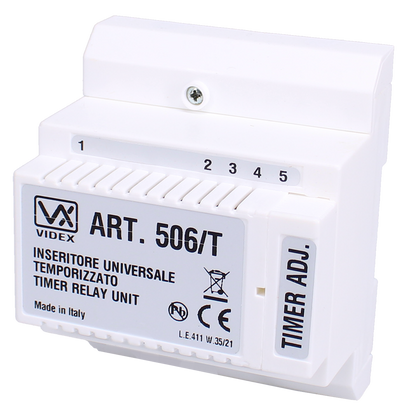

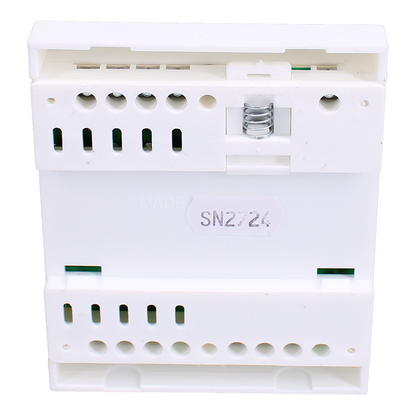

The Videx 506T is a versatile, boxed universal relay module designed for integration with door entry and access control systems. Operating on 12-24V AC or DC, it features a double pole changeover relay with two single pole changeover outputs, each rated at 240V AC, 5A. There is an adjustable timer, for between 2 and 100 seconds, and the unit supports both wall and DIN rail mounting (5-module A type DIN).

It's low-current transistor input accommodates both positive and negative triggers, enhancing compatibility with various analogue audio systems and enabling control of auxiliary devices such as stairwell lighting or magnetic locks.

VIDEX 506T 12V/24V AC/DC Relay With Timer

Features

  • Universal relay
  • Relay outputs are 2 x single pole changeover rated at 240v 5 amps
  • Timer (Adjustable 2-100 seconds)
  • Mounting Wall or DIN (5 modules A type DIN)
  • Dimensions: 87.5mm (H) x 105mm (W) x 65mm (D)

Finishes

  • White

Categories

  • Access Control
  • Accessory
  • Other
  • Relay

Our VIDEX 506T 12V/24V AC/DC Relay With Timer from Videx is a quality tested product at a reasonably low price.

If you need any further information or are looking for an alternative size or similar item please contact us.

Specifications
Depth 105mm
Height 65mm
Width 88mm
Finish White
Input Voltage 12/24V AC/DC
Pack Quantity 1
Standards CE Marked
Time Delay 2-100 Seconds
Product References L36923
Barcode References 5060081434038
* Information above is accurate at the time of entry and may be subject to change at any time.
